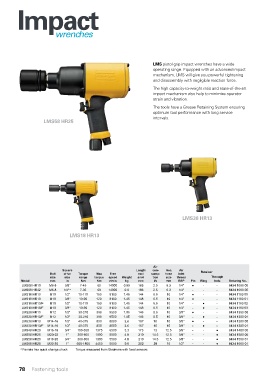

Impact

wrenches

LMS pistol grip impact wrenches have a wide
operating range. Equipped with an advanced impact
mechanism, LMS will give you powerful tightening
and disassembly with negligible reaction force.
The high capacity-to-weight ratio and state-of-the-art
impact mechanism also help to minimize operator
strain and vibration.
The tools have a Grease Retaining System ensuring
optimum tool performance with long service
intervals.
LMS58 HR25

LMS38 HR13

LMS18 HR13

Air
Square Length con- Rec. Air
Bolt drive Torque Max Free excl sump- hose inlet Retainer
size size range torque speed Weight anvil tion size thread Through
Model mm in Nm Nm r/min kg mm l/s mm BSP Pin Ring hole Ordering No.
LMS08 HR10 M6-8 3/8'' 7-45 65 14000 0.90 185 2.5 6.3 1/4'' ● - - 8434 1080 00
LMS08 HR42 M6-8 1/4'' a 7-35 60 14000 0.9 186 2.5 6.3 1/4'' - - - 8434 1080 05
LMS18 HR13 M10 1/2'' 10-110 150 8100 1.45 144 8.5 10 1/4'' ● - - 8434 1180 00
LMS18 HR10 M10 3/8'' 10-90 120 8100 1.45 148 6.5 10 1/4'' ● - - 8434 1180 01
LMS18 HR13/F M10 1/2'' 10-110 150 8100 1.45 144 8.5 10 1/4'' - ● - 8434 1180 02
LMS18 HR10/F M10 3/8'' 10-90 120 8100 1.45 148 6.5 10 1/4'' - ● - 8434 1180 03
LMS28 HR13 M12 1/2'' 30-210 390 9500 1.85 146 8.5 10 3/8'' ● - - 8434 1280 00
LMS28 HR13/F M12 1/2'' 30-210 390 9500 1.85 146 8.5 10 3/8'' - ● - 8434 1280 01
LMS38 HR13 M14-16 1/2'' 40-375 850 8000 2.6 167 10 10 3/8'' ● - - 8434 1380 00
LMS38 HR13/F M14-16 1/2'' 40-375 850 8000 2.6 167 10 10 3/8'' - ● - 8434 1380 01
LMS48 HR20 M16-18 3/4'' 100-550 1375 6500 3.3 173 12 12.5 3/8'' - - ● 8434 1480 00
LMS58 HR25 M20-22 1'' 300-800 1900 5500 4.8 210 14.5 12.5 3/8'' - - ● 8434 1580 00
LMS58 HR20 M18-20 3/4'' 300-800 1900 5500 4.8 210 14.5 12.5 3/8'' - - ● 8434 1580 01
LMS68 HR25 M22-30 1'' 600-1800 4450 5000 9.8 252 28 16 1/2'' - - ● 8434 1680 01
a Female hex quick change chuck Torque measured from Skidmore with fixed sensors

78 Fastening tools
