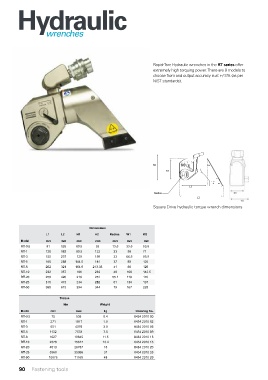

Hydraulic

wrenches

Rapid-Torc Hydraulic wrenches in the RT series offer
extremely high torquing power. There are 9 models to
choose from and output accuracy is at +/-3% (as per
NIST standards).

H2
H1

L1
Radius
L2

Square Drive hydraulic torque wrench dimensions

Dimensions
L1 L2 H1 H2 Radius W1 W2
Model mm mm mm mm mm mm mm
RT-0.5 81 125 60.5 93 13.5 33.5 50.5
RT-1 120 183 90.5 122 23 50 71
RT-3 155 237 120 156 33 66.5 95.5
RT-5 185 288 144.5 181 37 80 126
RT-8 202 321 164.6 213.36 41 88 126
RT-10 232 357 186 239 48 100 142.5
RT-20 259 420 216 251 55.1 119 170
RT-25 310 473 234 282 61 134 191
RT-50 390 615 294 344 79 167 228

Torque
Nm Weight
Model min max kg Ordering No.
RT-0.5 75 538 0.4 8434 2010 00
RT-1 271 1817 1.9 8434 2010 02
RT-3 651 4379 3.9 8434 2010 05
RT-5 1132 7578 7.5 8434 2010 09
RT-8 1627 10845 11.5 8434 2010 13
RT-10 2379 15617 13.4 8434 2010 16
RT-20 4013 26787 18 8434 2010 20
RT-25 5368 35096 31 8434 2010 25
RT-50 10675 71169 48 8434 2010 29

90 Fastening tools
