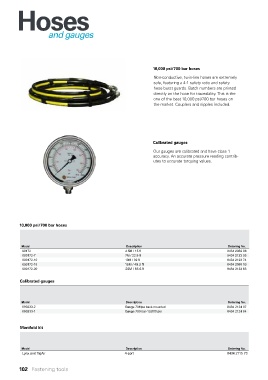

Hoses

and gauges

10,000 psi/700 bar hoses

Non-conductive, twin-line hoses are extremely
safe, featuring a 4:1 safety ratio and safety
hose burst guards. Batch numbers are printed
directly on the hose for traceability. This is the
one of the best 10,000 psi/700 bar hoses on
the market. Couplers and nipples included.

Calibrated gauges
Our gauges are calibrated and have class 1
accuracy. An accurate pressure reading contrib-
utes to accurate torquing values.

10,000 psi/700 bar hoses

Model Description Ordering No.
90172 4.5M / 15 ft 8434 2050 08
090172-7 7M / 22.9 ft 8434 2123 95
090172-10 10M / 32 ft 8434 2123 74
090172-15 15M / 49.2 ft 8434 2050 10
090172-20 20M / 65.6 ft 8434 2123 83

Calibrated gauges

Model Description Ordering No.
090233-2 Gauge 70Mpa back mounted 8434 2124 07
090233-1 Gauge 700 bar-10,000 psi 8434 2124 04

Manifold kit

Model Description Ordering No.
Lynx and TigAir 4-port 8434 2115 73

102 Fastening tools
