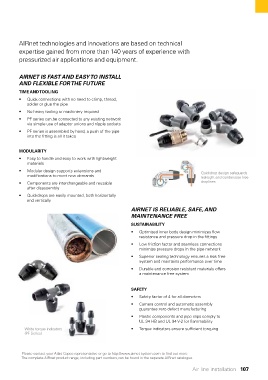

AIRnet technologies and innovations are based on technical
expertise gained from more than 140 years of experience with
pressurized air applications and equipment.

AIRNET IS FAST AND EASY TO INSTALL
AND FLEXIBLE FOR THE FUTURE

TIME AND TOOLING
• Quick connections with no need to crimp, thread,
solder or glue the pipe
• No heavy tooling or machinery required
• PF series can be connected to any existing network
via simple use of adaptor unions and nipple sockets
• PF series is assembled by hand, a push of the pipe
into the fitting is all it takes

MODULARITY
• Easy to handle and easy to work with lightweight
materials

• Modular design supports extensions and Quickdrop design safeguards
modifications to meet new demands leaktight and condensate free
• Components are interchangeable and reusable droplines
after disassembly
• Quickdrops are easily mounted, both horizontally
and vertically
AIRNET IS RELIABLE, SAFE, AND
MAINTENANCE FREE

SUSTAINABILITY
• Optimized inner body design minimizes flow
resistance and pressure drop in the fittings
• Low friction factor and seamless connections
minimize pressure drops in the pipe network
• Superior sealing technology ensures a leak free
system and maintains performance over time
• Durable and corrosion resistant materials offers
a maintenance free system

SAFETY

• Safety factor of 4 for all diameters
• Camera control and automatic assembly
guarantee zero defect manufacturing
• Plastic components and pipe clips comply to
UL 94 HB and UL 94 V-2 for flammability
White torque indicators • Torque indicators ensure sufficient torquing
(PF Series)

Please contact your Atlas Copco representative or go to http://www.airnet-system.com to find out more.
The complete AIRnet product range, including part numbers,can be found in the separate AIRnet catalogue.

Air line installation 107
