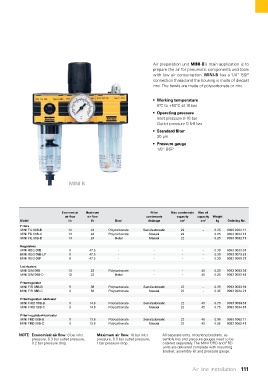

Air preparation unit MINI-B’s main application is to
prepare the air for pneumatic components and tools
with low air consumption. MINI-B has a 1/4” BSP
connection thread and the housing is made of diecast
zinc. The bowls are made of polycarbonate or zinc.

• Working temperature
0ºC to +50ºC at 10 bar

• Operating pressure
Inlet pressure 0-16 bar
Outlet pressure 0.5-8 bar
• Standard filter
30 μm
• Pressure gauge
1/8” BSP

MINI B

Economical Maximum Filter Max condensate Max oil
air flow air flow condensate capacity capacity Weight
Model l/s l/s Bowl drainage cm 3 cm 3 kg Ordering No.
Filters
MINI FIL 08B-B 12 24 Polycarbonate Semi/automatic 22 - 0.25 9093 0032 11
MINI FIL 08B-C 12 24 Polycarbonate Manual 22 0.25 9093 0032 41
MINI FIL 08B-D 13 24 Metal Manual 22 0.25 9093 0032 71

Regulators
MINI REG 08B 9 47.5 - - - - 0.30 9093 0033 01
MINI REG 08B-LP 9 47.5 - - - - 0.30 9093 0073 21
MINI REG 08P 8 47.5 - - - - 0.30 9093 0000 31
Lubricators
MINI DIM 08B 12 23 Polycarbonate - - 45 0.25 9093 0033 31
MINI DIM 08B-D 12 23 Metal - - 45 0.25 9093 0033 61
Filter/regulator
MINI F/R 08B-B 9 38 Polycarbonate Semi/automatic 22 - 0.35 9093 0033 91
MINI F/R 08B-C 9 38 Polycarbonate Manual 22 - 0.35 9093 0034 21
Filter/regulator+lubricator
MINI F/RD 08B-B 9 14.8 Polycarbonate Semi/automatic 22 45 0.75 9093 0034 51
MINI F/RD 08B-C 9 14.8 Polycarbonate Manual 22 45 0.75 9093 0034 81

Filter+regulator+lubricator
MINI FRD 08B-B 9 13.8 Polycarbonate Semi/automatic 22 45 0.95 9093 0062 11
MINI FRD 08B-C 9 13.8 Polycarbonate Manual 22 45 0.95 9093 0062 41

NOTE: Economical air flow: 8 bar inlet Maximum air flow: 10 bar inlet All separate units, mounting brackets, as-
pressure, 6.3 bar outlet pressure, pressure, 6.3 bar outlet pressure, sembly kits and pressure gauges need to be
0.2 bar pressure drop. 1 bar pressure drop. ordered separately. The MINI F/RD and FRD
units are delivered complete with mounting
bracket, assembly kit and pressure gauge.
