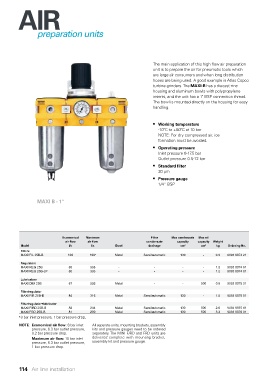

AIR

preparation
preparation units

The main application of this high flow air preparation
unit is to prepare the air for pneumatic tools which
are large air consumers and when long distribution
hoses are being used. A good example is Atlas Copco
turbine grinders. The MAXI-B has a diecast zinc
housing and aluminum bowls with polypropylene
inserts, and the unit has a 1" BSP connection thread.
The bowl is mounted directly on the housing for easy
handling.

• Working temperature
-10ºC to +50ºC at 10 bar
NOTE: For dry compressed air, ice
formation must be avoided.
• Operating pressure
Inlet pressure 0-17.5 bar
Outlet pressure 0.5-12 bar
• Standard filter
30 μm
• Pressure gauge
1/4” BSP

MAXI B - 1''

Economical Maximum Filter Max condensate Max oil
air flow air flow condensate capacity capacity Weight
Model l/s l/s Bowl drainage cm 3 cm 3 kg Ordering No.
Filters
MAXI FIL 25B-B 106 190 a Metal Semi/automatic 130 - 0.9 9093 0074 21
Regulators
MAXI REG 25B 85 333 - - - - 1.2 9093 0074 61
MAXI REG 25B-LP 85 333 - - - - 1.2 9093 0074 81

Lubricators
MAXI DIM 25B 87 295 Metal - - 500 0.8 9093 0075 21
Filter/regulator
MAXI F/R 25B-B 84 316 Metal Semi/automatic 130 - 1.5 9093 0075 51

Filter/regulator+lubricator
MAXI F/RD 25B-B 82 244 Metal Semi/automatic 130 500 2.8 9093 0075 81
MAXI FRD 25B-B 81 209 Metal Semi/automatic 130 500 3.3 9093 0076 01
a 8 bar inlet pressure, 1 bar pressure drop.
NOTE: Economical air flow: 8 bar inlet All separate units, mounting brackets, assembly
pressure, 6.3 bar outlet pressure, kits and pressure gauges need to be ordered
0.2 bar pressure drop. separately. The MINI F/RD and FRD units are
Maximum air flow: 10 bar inlet delivered complete with mounting bracket,
pressure, 6.3 bar outlet pressure, assembly kit and pressure gauge.
1 bar pressure drop.

114 Air line installation
