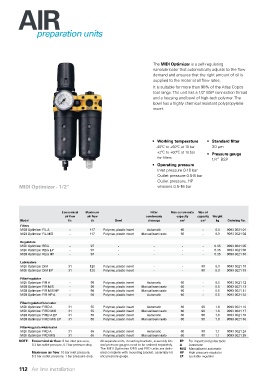

AIR

preparation
preparation units

The MIDI Optimizer is a self-regulating
nanolubricator that automatically adjusts to the flow
demand and ensures that the right amount of oil is
supplied to the motor at all flow rates.
It is suitable for more than 90% of the Atlas Copco
tool range. The unit has a 1/2" BSP connection thread
and a housing and bowl of high-tech polymer. The
bowl has a highly chemical resistant polypropylene
insert.

• Working temperature • Standard filter
-40ºC to +60ºC at 10 bar 30 μm
+2ºC to +60ºC at 10 bar • Pressure gauge
for filters 1/4” BSP
• Operating pressure
Inlet pressure 0-16 bar
Outlet pressure 0.5-8 bar
Outlet pressure, HP
MIDI Optimizer - 1/2'' versions 0.5-16 bar

Economical Maximum Filter Max condensate Max oil
air flow air flow condensate capacity capacity Weight
Model l/s l/s Bowl drainage cm 3 cm 3 kg Ordering No.
Filters
MIDI Optimizer FIL A - 117 Polymer, plastic insert Automatic 60 - 0.3 9093 0021 01
MIDI Optimizer FIL M/S - 117 Polymer, plastic insert Manual/semi auto 60 - 0.3 9093 0021 02
Regulators
MIDI Optimizer REG - 97 - - - - 0.35 9093 0021 05
MIDI Optimizer REG LP - 97 - - - - 0.35 9093 0021 06
MIDI Optimizer REG HP - 97 - - - - 0.35 9093 0021 30
Lubricators
MIDI Optimizer DIM 31 120 Polymer, plastic insert - - 90 0.3 9093 0021 10
MIDI Optimizer DIM EP 31 120 Polymer, plastic insert - - 90 0.3 9093 0021 33

Filter/regulator
MIDI Optimizer F/R A - 90 Polymer, plastic insert Automatic 60 - 0.5 9093 0021 12
MIDI Optimizer F/R M/S - 90 Polymer, plastic insert Manual/semi auto 60 - 0.5 9093 0021 13
MIDI Optimizer F/R M/S HP - 90 Polymer, plastic insert Manual/semi auto 60 - 0.5 9093 0021 31
MIDI Optimizer F/R HP A - 90 Polymer, plastic insert Automatic 60 - 0.5 9093 0021 32
Filter/regulator+lubricator
MIDI Optimizer F/RD A 31 55 Polymer, plastic insert Automatic 60 90 1.0 9093 0021 16
MIDI Optimizer F/RD M/S 31 55 Polymer, plastic insert Manual/semi auto 60 90 1.0 9093 0021 17
MIDI Optimizer F/RD A EP 31 55 Polymer, plastic insert Automatic 60 90 1.0 9093 0021 35
MIDI Optimizer F/RD M/S EP 31 55 Polymer, plastic insert Manual/semi auto 60 90 1.0 9093 0021 36
Filter+regulator+lubricator
MIDI Optimizer FRD A 31 55 Polymer, plastic insert Automatic 60 90 1.1 9093 0021 24
MIDI Optimizer FRD M/S 31 55 Polymer, plastic insert Manual/semi auto 60 90 1.1 9093 0021 25
NOTE: Economical air flow: 8 bar inlet pressure, All separate units, mounting brackets, assembly kits EP For impact and pulse tools
6.3 bar outlet pressure, 0.2 bar pressure drop. and pressure gauges need to be ordered separately. A Automatic
The MIDI Optimizer F/RD and FRD units are deliv- M/S Manual/semi automatic
Maximum air flow: 10 bar inlet pressure, ered complete with mounting bracket, assembly kit HP High pressure regulator
6.3 bar outlet pressure, 1 bar pressure drop. and pressure gauge. LP Lockable regulator

112 Air line installation
