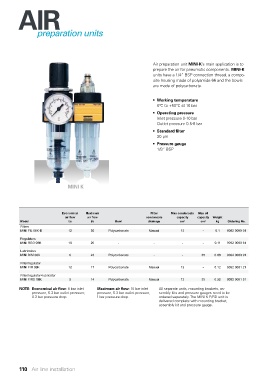

AIR

preparation
preparation units

Air preparation unit MINI-K’s main application is to
prepare the air for pneumatic components. MINI-K
units have a 1/4” BSP connection thread, a compo-
site housing made of polyamide 66 and the bowls
are made of polycarbonate.

• Working temperature
0ºC to +50ºC at 10 bar

• Operating pressure
Inlet pressure 0-10 bar
Outlet pressure 0.5-8 bar
• Standard filter
30 μm
• Pressure gauge
1/8” BSP

MINI K

Economical Maximum Filter Max condensate Max oil
air flow air flow condensate capacity capacity Weight
Model l/s l/s Bowl drainage cm 3 cm 3 kg Ordering No.
Filters
MINI FIL 08K-B 12 30 Polycarbonate Manual 12 - 0.1 9092 0000 01

Regulators
MINI REG 08K 10 20 - - - - 0.11 9092 0000 61
Lubricators
MINI DIM 08K 9 23 Polycarbonate - - 35 0.09 9092 0000 91
Filter/regulator
MINI F/R 08K 12 17 Polycarbonate Manual 12 - 0.12 9092 0001 21

Filter/regulator+lubricator
MINI F/RD 08K 9 14 Polycarbonate Manual 12 35 0.32 9092 0001 51
NOTE: Economical air flow: 8 bar inlet Maximum air flow: 10 bar inlet All separate units, mounting brackets, as-
pressure, 6.3 bar outlet pressure, pressure, 6.3 bar outlet pressure, sembly kits and pressure gauges need to be
0.2 bar pressure drop. 1 bar pressure drop. ordered separately. The MINI K F/RD unit is
delivered complete with mounting bracket,
assembly kit and pressure gauge.

110 Air line installation
