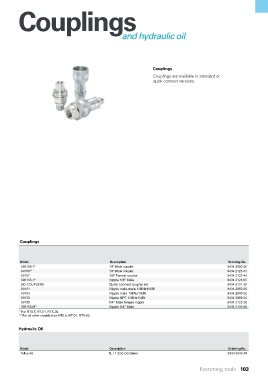

Couplings

and hydraulic oil

Couplings
Couplings are available in standard or
quick connect versions.

Couplings

Model Description Ordering No.
090156-1* 1/8" Male coupler 8434 2050 06
90156** 1/4" Male coupler 8434 2123 41
90157 3/8" Female coupler 8434 2123 44
090155-1* Nipple 1/8" Male 8434 2123 65
QC-COUPLERS Quick connect coupler set 8434 2131 36
90101 Nipple male-male 1/4INx1/4IN 8434 2050 00
90103 Nipple male 1/4INx1/8IN 8434 2050 02
90135 Nipple NPT 1/4INx1/4IN 8434 2050 04
90155 1/4" Male female nipple 8434 2123 38
090155-M* Nipple 1/4" Male 8434 2123 68
* For RT0.5, RT-01, RTX-02
** For all other models than RT0.5, RT-01, RTX-02

Hydraulic Oil

Model Description Ordering No.
Tellus 46 5L / 1.32G Container 8434 2040 45

Fastening tools 103
