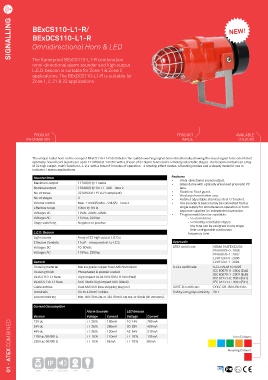

SIGNALLING

SIGNALLING BExCS110-L1-R/ NEW!

BExDCS110-L1-R

Omnidirectional Horn & LED

The flameproof BExCS110-L1-R combination
omni-directional alarm sounder and high output
L.E.D. beacon is suitable for Zone 1 & Zone 2
applications. The BExDCS110-L1-R is suitable for
Zone 1, 2, 21 & 22 applications.

PRODUCT PRODUCT AVAILABLE
INFORMATION IMAGE COLOURS

The unique radial horn on the compact BExCS110-L1-R distributes the audible warning signal omni-directionally allowing the visual signal to be orientated
optimally. Sound level ouputs are up to 117dB(A) at 1 metre with a choice of 32 alarm tones and 3 remotely selectable stages. The beacon contains an array
of 32 high output, multi-function L.E.D.s. with a total of 9 modes of operation - 4 rotating effect modes, 4 flashing modes and a steady mode for use in
indicator / status applications.

Sounder/Horn Features
• Omni-directional sound output.
Maximum output 117dB(A) @ 1 metre • Glass dome with optically enhanced prismatic PC
Nominal output 110dB(A) @ 1m +/- 3dB - Tone 2 lens.
No. of tones 32 (UKOOA / PFEER compliant) • Stainless Steel guard.
•
Very large termination area.
No. of stages 3 • Ratchet adjustable stainless steel ‘U’ bracket.
Volume control Max. 110dB(A);Min. 72dB(A) - Tone 2 • The sounder & beacon may be connected from a
Effective range 100m @ 1KHz single supply for simultaneous operation or from
Voltages DC 12Vdc, 24Vdc, 48Vdc • separate supplies for independent operation.
‘Programmable’version available:
Voltages AC 115Vac, 230Vac - 45 alarm tones
Stage switching Negative or positive - 4 remotely selectable stages
- Any tone can be assigned to any stage
- User configurable continuous
L.E.D. Beacon frequency tone
Light source Array of 32 high output L.E.D.s
Effective Candela 11cd* - measured ref. to I.E.S. Approvals
Voltages DC 10-50Vdc ATEX certificate KEMA 01ATEX2223X
EN 60079-0 : 2006
Voltages AC 115Vac, 230Vac
EN 60079-1 : 2007
EN 61241-0 : 2006
General EN 61241-1 : 2004
Housing material Marine grade copper free LM6 Aluminium IECEx certificate IECEx KEM 10.0025
Housing finish Phosphated & powder coated IEC 60079-0 : 2004 (Ed4)
IEC 60079-1 : 2007 (Ed6)
BExCS110-L1 flare High impact UL94 V0 & 5VA FR ABS (Red) IEC 61241-0 : 2004 (Ed1)
BExDCS110-L1 flare Anti-Static High impact ABS (Black) IEC 61241-1 : 2004 (Ed1)
Cable entries Dual M20 ISO (one stopping plug inc) GOST-R certificate POCC GB.JB05.B03365
Terminals 0.5 to 4.0mm² cables. Safety-integritysuitability SIL1
Line monitoring Min. 500 Ohm 2w, or 3k3 Ohm 0.5w res. or diode (dc versions).
Current Consumption
Alarm Sounder LED Beacon
Version Voltage Current Voltage Current
760mA
10-14V
01 - ATEX COMBINED 48V dc IP EL Sounder Bell LED 130mA 42-54V 210mA Housing Colours:
12V dc
195mA
+/-25%
24V dc
400mA
265mA
+/-25%
20-28V
+/-25%
110mA
115V ac 50/60Hz
+/-10%
135mA
+/-10%
Lens Colours:
+/-10%
+/-10%
56mA
230V ac 50/60Hz
65mA
66/67
5,0kg
