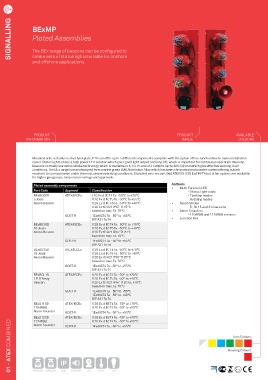

SIGNALLING

SIGNALLING BExMP

Plated Assemblies

The BEx range of beacons can be configured to
create sets of status lightssuitable for onshore
and offshore applications.

PRODUCT PRODUCT AVAILABLE
INFORMATION IMAGE COLOURS

Mounted onto a stainless steel backplate, E2S can offer up to 5 different components complete with the option of Exe Junction Box to make installation
easier. Status lights utilise a high power LED solution which gives good light output and long life, which is important for continuous operation. Warning
beacons normally use xenon strobe technology which is available in 5, 10, 15 and 21J outputs (up to 485 Cd) and which give effective warning in all
conditions. The BEx range is manufactured from marine grade LM6 Aluminium Alloy which has been chromated and powder coated offering suberb
resistant to corrosion even under the most severe operating conditions. Standard sets are certified ATEX EX II 2G Exd IIB T4 but other options are available
for higher gas groups, temperature ratings and approvals.
Plated assembly components Features
• Multi Function LED
Part Code Approval Classification - Status Light mode
BExBG05D ATEX/IECEx I 2G Ex d IIC T4 Ta. -50°C to +70°C - Flashing modes
5 Joule II 2G Ex d IIC T5 Ta. -50°C to +55°C - Rotating modes
Xenon Beacon II 2G Ex d IIC T6 Ta. -50°C to +40°C • Xenon Strobe
II 2D Ex tD A21 IP67 T115°C - 5, 10, 15 and 21J versions
based on max. Ta. 70°C • Alarm Sounders
GOST-R 1ExdIICT4 Ta. -50° to +55°C - 110dB(A) and 117dB(A) versions
DIP A21 Ta T4 • Junction Box
BExBG10D ATEX/IECEx II 2G Ex d IIC T4 Ta. -50°C to +70°C
10 Joule II 2G Ex d IIC T5 Ta. -50°C to +40°C
Xenon Beacon II 2D Ex tD A21 IP67 T125°C
based on max. Ta. 70°C
GOST-R 1ExdIICT4 Ta. -50° to +55°C
DIP A21 Ta T4
BExBG15D ATEX/IECEx II 2G Ex d IIC T4 Ta. -50°C to +70°C
15 Joule II 2G Ex d IIC T5 Ta. -50°C to +40°C
Xenon Beacon II 2D Ex tD A21 IP67 T125°C
based on max. Ta. 70°C
GOST-R 1ExdIICT4 Ta. -50° to +55°C
DIP A21 Ta T4
BExBGL1D ATEX/IECEx II 2G Ex d IIC T4 Ta. -50° to +70°C
L.E.D Array II 2G Ex d IIC T5 Ta. -50° to +40°C
Beacon II 2D Ex tD A21 IP67 T120 Ta. +70°C
based on max. Ta. 70°C
GOST-R 1ExdIICT5 Ta. -50° to +55°C
1ExdIICT4 Ta. -50° to +40°C
DIP A21 Ta T4
BExS110D ATEX/IECEx II 2G Ex d IIB T4 Ta. -50° to +70°C
110dB(A) II 2G Ex d IIC T4 Ta. -50° to +55°C
Alarm Sounder GOST-R 1ExdIICT4 Ta. -50° to +55°C
BExS120D ATEX/IECEx II 2G Ex d IIB T4 Ta. -50° to +70°C
II 2G Ex d IIC T4 Ta. -50° to +55°C
117dB(A)
01 - ATEX COMBINED 3.00kg (DC) 3,50kg (AC) IP EL Sounder Bell Xenon LED Housing Colours:
Alarm Sounder
GOST-R
1ExdIICT4 Ta. -50° to +55°C
Lens Colours:

66/67
