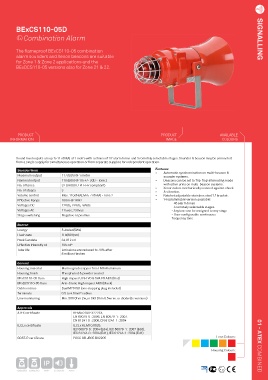

BExCS110-05D SIGNALLING
Combination Alarm SIGNALLING

The flameproof BExCS110-05 combination
alarm sounders and Xenon beacons are suitable
for Zone 1 & Zone 2 applications and the
BExDCS110-05 versions also for Zone 21 & 22.

PRODUCT PRODUCT AVAILABLE
INFORMATION IMAGE COLOURS

Sound level ouputs are up to 117dB(A) at 1 metre with a choice of 32 alarm tones and 3 remotely selectable stages. Sounder & beacon may be connected
from a single supply for simultaneous operation or from separate supplies for independent operation.

Sounder/Horn Features
•
Automatic synchronisation on multi-beacon &
Maximum output 117dB(A) @ 1 metre sounder systems.
Nominal output 110dB(A) @ 1m +/- 3dB - Tone 2 • Beacons can be set to ‘flip-flop’ alternating mode
No. of tones 32 (UKOOA / PFEER compliant) with other units on multi-beacon systems.
No. of stages 3 • Xenon tubes mechanically secured against shock
•
& vibration.
Volume control Max. 110dB(A);Min. 72dB(A) - Tone 2 • Ratchet adjustable stainless steel ‘U’ bracket.
Effective Range 100m @ 1KHz • ‘Programmable’ version available:
- 45 alarm tones
Voltages DC 12Vdc, 24Vdc, 48Vdc
- 4 remotely selectable stages
Voltages AC 115vac; 230vac - Anytone can be assigned to any stage
Stage switching Negative or positive - User configurable continuous
frequency tone
Beacon
Energy 5 Joules(5Ws)
Flash rate 1Hz(60 fpm)
Peak Candela 34,812 cd
Effective Intensity cd 105 cd*
Tube life Emissions are reduced to 70% after
8 million flashes
General
Housing material Marine grade copper free LM6 Aluminium
Housing finish Phosphated & powder coated
BExCS110-05 flare High impact UL94 V0 & 5VA FR ABS (Red)
BExDCS110-05 flare Anti-Static High impact ABS (Black)
Cable entries DualM20 ISO (one stopping plug included)
Terminals 0.5 to 4.0mm² cables
Line monitoring Min. 500 Ohm 2w, or 3k3 Ohm 0.5w res. or diode (dc versions)

Approvals
ATEX certificate KEMA 01ATEX2223X,
EN 60079-0 : 2006, EN 60079-1 : 2007,
EN 61241-0 : 2006, EN 61241-1 : 2004
IECEx certificate IECEx KEM10.0025,
IEC 60079-0 : 2004 (Ed4), IEC 60079-1 : 2007 (Ed6),
IEC 61241-0 : 2004 (Ed1), IEC 61241-1 : 2004 (Ed1)
GOST-R certificate POCC GB.JB05.B02205 Lens Colours:

Housing Colours: 01 - ATEX COMBINED

IP

4,80kg (DC) 5,00kg (AC) 66/67 EL Sounder Xenon
