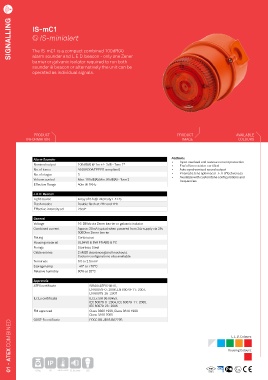

SIGNALLING IS-mC1

IS-minialert

The IS-mC1 is a compact combined 100dB(A)
alarm sounder and L.E.D. beacon - only one Zener
barrier or galvanic isolator required to run both
sounder & beacon or alternatively the unit can be
operated as individual signals.

PRODUCT PRODUCT AVAILABLE
INFORMATION IMAGE COLOURS

Alarm Sounder Features
•
Input overload and reverse current protection
Nominal output 100dB(A) @ 1m +/- 3dB - Tone 2* • End of line resistor certified
No. of tones 49 (UKOOA/PFEER compliant) • Auto synchronised sound output
No. of stages 3 • Prismatic lens optimises L.E.D effectiveness
Volume control Max. 100dB(A);Min. 90dB(A) - Tone 2 • Available with customtone configurations and
frequencies
Effective Range 40m @ 1KHz
L.E.D. Beacon
Light source Array of 6 high intensity L.E.D’s
Flash modes Double flash at 2Hz and 1Hz
Effective intensity cd 23cd*

General
Voltage 16-28Vdc via Zener barrier or galvanic isolator
Combined current Approx: 30mA typical when powered from 24v supply via 28v
300Ohm Zener barrier
Rating Continuous
Housing material UL94V0 & 5VA FR ABS & PC
Fixings Stainless Steel
Cable entries 2 xM20 clearance gland knockouts.
Custom configurations also available.
Terminals 0.5 to 2.5mm²
Storage temp -40° to +70°C
Relative humidity 90% at 20°C
Approvals
ATEX certificate SIRA05ATEX2084X,
EN 60079-0 : 2006, EN 60079-11 : 2007,
EN 60079-26 : 2007
IECEx certificate IECEx SIR 06.0045X,
IEC 60079-0 : 2004, IEC 60079-11 : 2006,
IEC 60079-26 : 2006
FM approved Class 3600 1998, Class 3610 1999
Class 3810 2005
GOST-R certificate POCC GB.JB05.B02205
01 - ATEX COMBINED 0,5kg IP -40ºC / +60ºC EL Sounder LED Housing Colours:
