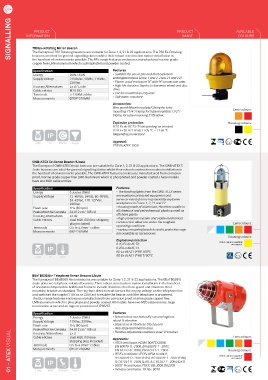

SIGNALLING

SIGNALLING INFORMATION PRODUCT AVAILABLE

PRODUCT
COLOURS

783 Ex-Rotating Mirror Beacon
The flameproof 783 Rotating beacons are suitable for Zone 1, 2, 21 & 22 applications. The 783 Ex-Rotating
beacons are ideal for general signalling duties whilst their robust construction makes installation in
the harshest of environments possible. The BEx range features enclosures manufactured marine grade
copper free LM6 aluminium which is phosphated and powder coated.
Specification Features
Energy 20W / 35W • Suitable for use in gas and dust explosion
Supply Voltage 24Vdc/ac, 48Vdc, 115Vdc, endangered areas (Zone 1 and 2, Zone 21 and 22)
230Vac • Flame-proof enclosure ”d” with ”e” connection area
Housing Alternatives Ex d / Ex de • High life duration thanks to low wear wheel and disc
Cable entries M20 ISO drive
Terminals 5-13MM cables • Can be mounted as required
Measurements Ø209*315MM • Salt water resistant
Accessories:
Wire guard/Mounting plate/Clamp for tube Lens colours:
mounting 11/4”/Clamp for tube mounting 11/2”/
Clamp for tube mounting 2”/Bracket
Explosion protection: Housing colours:
II 2G Ex de IIC T3–T4 (depending on version)
II 2D Ex tD A21 IP 66 T 105 °C – T 150 °C
IP (depending on version)
Approval:
4,6kg 66 RPM 180 Halogen
PTB 06 ATEX 1039

CWB-ATEX Ex-Xenon Beacon 5Joule
The flameproof CWB-ATEX Xenon beacons are suitable for Zone 1, 2, 21 & 22 applications. The CWB-ATEX 5
Joule beacons are ideal for general signalling duties whilst their robust construction makes installation in
the harshest of environments possible. The CWB-ATEX features enclosures manufactured from corrosion
proof, marine grade copper free LM6 aluminium which is phosphated and powder coated. These models
have one M20 cable entries.
Specification Features
Energy 5 Joules (5Ws) • The flashing lights from the CWB-ATEX series
Supply Voltage 12-48Vdc, 24Vdc, 60-80Vdc, are explosion protected equipment and
24-42Vac, 110-127Vac, serve as visual alarms in potentially explosive
230Vac workplaces in Zones 1, 2, 21 and 22
Flash rate 1Hz (60 fpm) • housing made of aluminium, therefore usable in
Peak/effective Candela 34,812 cd / 105 cd all chemical and petrochemical plants as well as
Housing alternatives Ex de offshore plants
Cable entries Dual M20 ISO (one stopping • high protection system and stable mechanical
plug included) construction allow use under the toughest Lens colours:
Terminals 0.5 to 4.0mm² cables operating conditions
Measurements Ø82*282MM • various mounting brackets and a protective cage
are available as accessories
Housing colours:
Explosion protection Other colours available
II 2G Ex de IIC T6 on request.
IP II 2G Ex de IIC T5
IID Ex dt A21 IP 66 T80°C
IID Ex dt A21 IP 66 T100°C
1,25kg 66 Xenon

BExTBG05 Ex- Telephone Xenon Beacon 5Joule
The flameproof BExBG05 Xenon beacons are suitable for Zone 1, 2, 21 & 22 applications. The BExTBG05 5
Joule units are telephone initiated beacons. Their robust construction makes installation in the harshest
of environmentspossible. Additional features include stainless steel lens guard and stainless steel
mounting bracket as standard. The ring tone detect circuit senses the ringing voltage on the telephone line
and switches the supply (115V ac or 230V ac) to enable the beacon until the telephone is answered.
The BEx range features enclosures manufactured from corrosion proof, marine grade copper free
LM6 aluminium which is phosphate and powder coated. All models have two M20 cable entries, large
termination areas and an ingress protection of IP66/67.
Specification Features
Energy 5 Joules (5Ws) • Xenon tubes mechanically secured against
Supply Voltage 115Vac, 230Vac shock & vibration
Flash rate 1Hz (60 fpm) • Glass lens & Stainless Steel guard
Peak/effective Candela 34,812 cd / 105 cd • Very large termination area. Lens colours:
01 - ATEX VISUAL Terminals IP Telephone stopping plug included) • ATEX certificate: KEMA 00ATEX2006, Other colours available
• Ratchet adjustable stainless steel ‘U’ bracket.
Housing Alternatives
Ex d
Dual M20 ISO (one
Cable entries
Approvals:
0.5 to 4.0mm² cables
EN 60079-0 : 2006, EN 60079-1 : 2007,
Measurements
Ø153*246MM
EN 61241-0 : 2006, EN 61241-1 : 2004
Housing colours:
• IECEx certificate: IECEx KEM 10.0002,
IEC 60079-0 : 2004 (Ed4), IEC 60079-1 : 2007 (Ed6),
on request.
IEC 61241-0 : 2004 (Ed1), IEC 61241-1 : 2004 (Ed1)
• GOST-R certificate: POCC GB.JB05.B02205
• Inmetro certificate: 10-IEx-0010
Xenon
66/67
2,75kg
