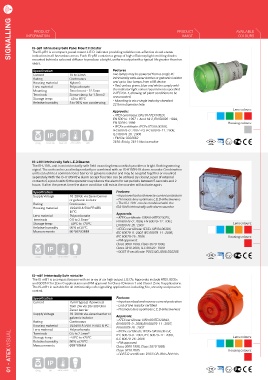

SIGNALLING

SIGNALLING INFORMATION PRODUCT AVAILABLE

PRODUCT
COLOURS

IS-pB1 Intrinsically Safe Panel Mount Indicator
The IS-pB1 is a compact, panel mount L.E.D. indicator providing reliable cost-effective visual status
indication in all hazardous areas. Each IS-pB1 contains a group of high efficiency light emitting diodes
mounted behind a coloured diffuser to produce a bright, uniform output with a typical life greater than ten
years.
Specification Features
Current 18 to 22mA Two lamps may be powered from a single IIC
Rating Continuous intrinsically safe Zener barrier or galvanic isolator
Housing material Nylon 6 and up to four lamps from a IIB device.
Lens material Polycarbonate • Red, amber, green, blue and white comply with
Mounting Panel mont - 22.5mm the indicator light colour requirements specified
Terminals Screw clamp for 1.5mm2 in IEC204-1, allowing all plant conditions to be
Storage temp -40 to 85°C annunciated.
• Mounting is via a single industry standard
Relative humidity 5 to 95% non condensing
22.5mm diameter hole.
Lens colours:
Approvals:
• ATEX certificate: BAS 01ATEX1062X,
EN 50014 : 1997 + Amd 1& 2, EN 50020 : 1994,
EN 50284: 1999 Housing colours:
• IECEx certificate: IECEx ITS 08.0030X,
IEC 60079-0 : 2007-10, IEC 60079-11 : 2006,
IP IP IEC 60079-26 : 2006
• FM file: 3022662
3610: Entity, 3611: Nonincendive
0,1kg Front: 66 Rear: 20 -20ºC / +60ºC LED

IS-L101 Intrinsically Safe L.E.D Beacon
The IS-L101L unit is an intrinsically safe field mounting beacon which provides a bright flashing warning
signal. The unit can be used independently or combined with an IS-A105N 49 alarm sounder. Combination
units can utilize a common zener barrier or galvanic isolator and may be coupled together or mounted
seperately. With the IS-A105N the alarm accept function can be utilised. By closing a pair of external
contacts (i.e push switch) the operator may silence the alarm for set periods between 5 seconds and 2
hours. If after the preset time the alarm condition still exists the sounder will activate again.
Specification Features
Supply Voltage 16-28Vdc via Zener barrier • Input overload and reverse current protection
or galvanic isolator • Prismatic lens optimises L.E.D effectiveness
Rating Continuous • The IS-L101L can be combined with the
Housing material UL94V0 & 5VA FR ABS ISA105N intrinsically safe alarm sounder.
& PC
Lens material Polycarbonate Approvals:
• ATEX certificate: SIRA 04ATEX2302X,
Terminals 0.5 to 2.5mm² EN 60079-0 : 2006, EN 60079-11 : 2007,
Storage temp -40ºC to +70ºC EN 60079-26 : 2007 Lens colours:
Relative humidity 90% at 20°C • IECEx certificate: IECEx SIR 04.0039X,
Measurements 86*86*93MM IEC 60079-0 : 2007, IEC 60079-11 : 2006,
IEC 60079-26 : 2006 Housing colours:
• FM approved:
Class 3600 1998, Class 3610 1999,
IP Class 3810 2005, IEC 60529 : 1989
• GOST-R certificate: POCC GB.JB05.B02205
0,2kg 66 -40ºC / +60ºC LED

IS-mB1 Intrinsically Safe minialite
The IS-mB1 is a compact beacon with an array of six high output L.E.D’s. Approvals include ATEX, IECEx
and GOST-R for Zone 0 applications and FM approval for Class I Division 1 and Class I Zone 0 applications.
The IS-mB1 is suitable for all intrinsically safe signalling applications including fire, security and process
control.
Specification Features
Current 25mA typical if powered • Input overload and reverse current protection
from 24v via 28v 300 Ohm • End of line resistor certified
Zener barrier • Prismatic lens optimises L.E.D effectiveness
Supply Voltage 16-28Vdc via Zener barrier or
galvanic isolator Approvals:
Rating Continuous • ATEX certificate: SIRA 05ATEX2084X,
EN 60079-0 : 2006,EN 60079-11 : 2007,
Housing material UL94V0 & 5VA FR ABS & PC EN 60079-26 : 2007
Lens material Polycarbonate • IECEx certificate: IECEx SIR 06.0045X, Lens colours:
01 - ATEX VISUAL Relative humidity -40ºC / +60ºC 90% at 20°C • FM approved Housing colours:
0.5 to 2.5mm²
Terminals
IEC 60079-0 : 2004, IEC 60079-11 : 2006,
Storage temp
-40ºC to +70ºC
IEC 60079-26 : 2006
Ø89*85MM
Measurements
Class 3600 1998, Class 3610 1999,
Class 3810 2005
• GOST-R certificate: POCC GB.JB05.B02205
IP
LED
0,4kg
66
