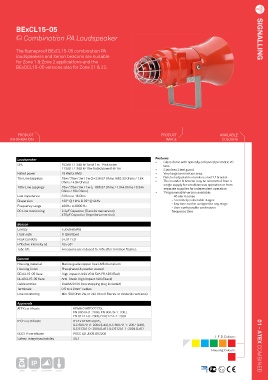

BExCL15-05 SIGNALLING
Combination PA Loudspeaker SIGNALLING

The flameproof BExCL15-05 combination PA
loudspeakers and Xenon beacons are suitable
for Zone 1 & Zone 2 applications and the
BExDCL15-05 versions also for Zone 21 & 22.

PRODUCT PRODUCT AVAILABLE
INFORMATION IMAGE COLOURS

Loudspeaker Features
•
Glass dome with optically enhanced prismatic PC
SPL 102dB +/-3dB @ 1w @ 1m - Pink noise lens
113dB +/-3dB @ 15w (rated power) @ 1m • Stainless Steel guard
Rated power 15 Watts RMS • Very large termination area.
70v Line tappings 15w / 7.5w / 3w / 1w (z=336.67 Ohms /653.33 Ohms / 1.6k • Ratchet adjustable stainless steel ‘U’ bracket.
Ohms / 4.9k Ohms) • The sounder & beacon may be connected from a
100v Line tappings 15w / 7.5w / 3w / 1w (z=666.87 Ohms / 1.34k Ohms / 3.34k single supply for simultaneous operation or from
separate supplies for independent operation
Ohms / 10k Ohms)
• ‘Programmable’ version available:
Low impedence 8 Ohm or 16 Ohm - 45 alarm tones
Dispersion 120° @ 1kHz & 32° @ 4kHz - 4 remotely selectable stages
- Any tone can be assigned to any stage
Frequency range 400Hz to 8000 Hz - User configurable continuous
DC Line monitoring 2.2µF Capacitor (Transformerversion) frequency tone
470µF Capacitor (Impedance version)
Beacon
Energy 5 Joules(5Ws)
Flash rate 1Hz(60 fpm)
Peak Candela 34,812 cd
Effective Intensity cd 105 cd*
Tube life Emissions are reduced to 70% after 8 million flashes

General
Housing material Marine grade copper free LM6 Aluminium
Housing finish Phosphated & powder coated
BExCL15-05 flare High impact UL94 V0 & 5VA FR ABS (Red)
BExDCL15-05 flare Anti-Static High impact ABS (Black)
Cable entries DualM20 ISO (one stopping plug included)
Terminals 0.5 to 4.0mm² cables
Line monitoring Min. 500 Ohm 2w, or 3k3 Ohm 0.5w res. or diode (dc versions).

Approvals
ATEX certificate KEMA 01ATEX2223X,
EN 60079-0 : 2006, EN 60079-1 : 2007,
EN 61241-0 : 2006, EN 61241-1 : 2004
IECEx certificate IECEx KEM10.0025,
IEC 60079-0 : 2004 (Ed4), IEC 60079-1 : 2007 (Ed6),
IEC 61241-0 : 2004 (Ed1), IEC 61241-1 : 2004 (Ed1)
GOST-R certificate POCC GB.JB05.B02205
L.E.D. Colours:
Safety-integritysuitability SIL1
Housing Colours: 01 - ATEX COMBINED

IP

5,0kg 66/67 Loudspeaker Xenon
