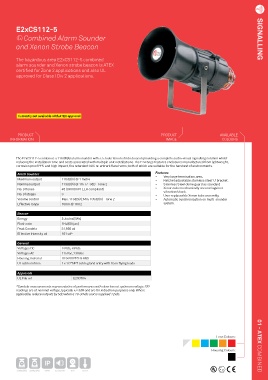

E2xCS112-5 SIGNALLING
Combined Alarm Sounder SIGNALLING

and Xenon Strobe Beacon

The hazardous area E2xCS112-5 combined
alarm sounder and Xenon strobe beacon is ATEX
certified for Zone 2 applications and also UL
approved for Class I Div 2 applications.

Currently not available with ATEX approval

PRODUCT PRODUCT AVAILABLE
INFORMATION IMAGE COLOURS

The E2xCS112-5 combines a 116dB(A) alarm sounder with a 5 Joule Xenon strobe beacon providing a complete audio-visual signalling solution whilst
reducing the installation time and costs associated with multiple unit installations. The E2xrange features enclosures manufactured from lightweight,
corrosion proof PPS and high impact, fire retardant ABS re-entrant flare horns; both of which are suitable for the harshest of environments.

Alarm Sounder Features
• Very large termination area.
Maximum output 116dB(A) @ 1 metre • Ratchet adjustable stainless steel ‘U’ bracket.
Nominal output 113dB(A) @ 1m +/- 3dB - Tone 2 • Stainless Steel dome guard as standard
No. of tones 45 (UKOOA/PFEER compliant) • Xenon tube mechanically secured against
vibration/shock.
No. of stages 3
• User replaceable Xenon tube assembly.
Volume control Max. 113dB(A);Min. 105dB(A) - Tone 2 • Automatic synchronisation on multi-sounder
Effective range 100m @ 1KHz system.
Beacon
Energy 5 Joules(5Ws)
Flash rate 1Hz(60 fpm)
Peak Candela 31,950 cd
Effective Intensity cd 101 cd*

General
Voltages DC 24Vdc, 48Vdc
Voltages AC 115Vac, 230Vac
Housing material UL94V0 PPS & ABS
UL cable entries 1 x 1/2”NPT cable gland entry with 0.5m flying leads

Approvals
UL File ref E230764

*Candela measurements representative of performance with clear lens at optimum voltage. SPL
readings are at nominal voltage, typically +/-3dB and are for indication purposes only. Where
applicable, reduce outputs by 5dB when a 10-30vdc unit is supplied 12vdc.

Lens Colours:

Housing Colours: 01 - ATEX COMBINED

IP

3.00kg (DC) 3,50kg (AC) 66/67 EL Sounder Bell Xenon
