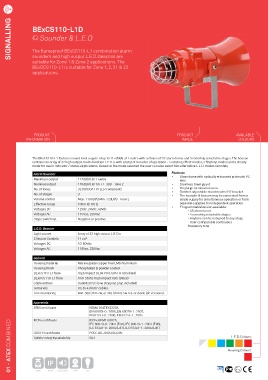

SIGNALLING BExCS110-L1D

Sounder & L.E.D

The flameproof BExCS110-L1 combination alarm
sounders and high output L.E.D. beacons are
suitable for Zone 1 & Zone 2 applications. The
BExDCS110-L1 is suitable for Zone 1, 2, 21 & 22
applications.

PRODUCT PRODUCT AVAILABLE
INFORMATION IMAGE COLOURS

The BExCS110-L1 features sound level ouputs of up to 117dB(A) at 1 metre with a choice of 32 alarm tones and 3 remotely selectable stages. The beacon
contains an array of 32 high output, multi-function L.E.D.s. with a total of 9 modes of operation - 4 rotating effect modes, 4 flashing modes and a steady
mode for use in indicator / status applications. Based on the mode selected the user can also select two alternative L.E.D. modes remotely.

Alarm Sounder Features
• Glass dome with optically enhanced prismatic PC
Maximum output 117dB(A) @ 1 metre lens
Nominal output 110dB(A) @ 1m +/- 3dB - Tone 2 • Stainless Steel guard
No. of tones 32 (UKOOA / PFEER compliant) • Verylarge termination area.
• Ratchet adjustable stainlesssteel ‘U’ bracket.
No. of stages 3
• The sounder & beacon may be connected from a
Volume control Max. 110dB(A);Min. 72dB(A) - Tone 2 single supply for simultaneous operation or from
Effective range 100m @ 1KHz seperate supplies for independent operation.
• ‘Programmable’version available:
Voltages DC 12Vdc, 24Vdc, 48Vdc - 45 alarm tones
Voltages AC 115Vac, 230Vac - 4 remotely selectable stages
Stage switching Negative or positive - Anytone can be assigned to any stage
- User configurable continuous
frequency tone
L.E.D. Beacon
Light source Array of 32 high output L.E.D.s
Effective Candela 11 cd*
Voltages DC 10-50Vdc
Voltages AC 115Vac, 230Vac

General
Housing material Marine grade copper free LM6 Aluminium
Housing finish Phosphated & powder coated
BExCS110-L1 flare High impact UL94 V0 & 5VA FR ABS (Red)
BExDCS110-L1 flare Anti-Static High impact ABS (Black)
Cable entries DualM20 ISO (one stopping plug included)
Terminals 0.5 to 4.0mm² cables.
Line monitoring Min. 500 Ohm 2w, or 3k3 Ohm 0.5w res. or diode (dc versions).
Approvals
ATEX certificate KEMA 01ATEX2223X,
EN 60079-0 : 2006, EN 60079-1 : 2007,
EN 61241-0 : 2006, EN 61241-1 : 2004
IECEx KEM10.0025,
IECEx certificate
01 - ATEX COMBINED GOST-R certificate Bell LED POCC GB.JB05.B02205 Housing Colours:
IEC 60079-0 : 2004 (Ed4), IEC 60079-1 : 2007 (Ed6),
IEC 61241-0 : 2004 (Ed1), IEC 61241-1 : 2004 (Ed1)
L.E.D. Colours:
Safety-integritysuitability
SIL1

IP

EL Sounder
66/67
5,0kg
