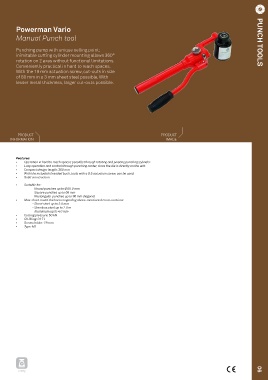

Powerman Vario PUNCH TOOLS
Manual Punch tool PUNCH TOOLS

Punching pump with unique selling point:
inimitable cutting cylinder mounting allows 360°
rotation on 2 axes without functional limitations.
Conveniently practical in hard to reach spaces.
With the 19 mm actuation screw, cut-outs in size
of 80 mm in a 3 mm sheet steel possible. With
lesser metal thickness, larger cut-outs possible.

PRODUCT PRODUCT
INFORMATION IMAGE

Features:
• Operation in hard to reach spaces possible through rotating and pivoting punching cylinder.
• Easy operation and control through punching center, since the die is directly on the unit.
• Compact design: length; 360 mm
• With the included threaded bush, tools with a 9.5 actuation screw, can be used.
• Solid construction
• Suitable for:
- Round punches up to Ø 80.0 mm
- Square punches up to 68 mm
- Rectangular punches up to 96 mm diagonal
• Max. sheet metal thickness regarding above-mentioned cross-sections:
- Sheet steel up to 3.0 mm
- Stainless steel up to 2.0 m
- Aluminium up to 4.0 mm
• Cutting pressure: 50 kN
• Oil filling: 0.17 l
• Screw holder: 19 mm
• Type: M1

2,46kg 06
