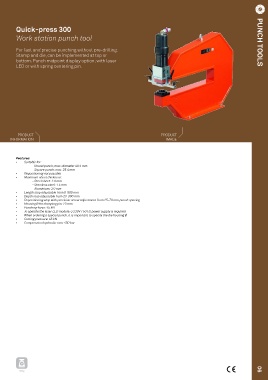

Quick-press 300 PUNCH TOOLS
Work station punch tool PUNCH TOOLS

For fast and precise punching without pre-drilling.
Stamp and die, can be implemented at top or
bottom. Punch midpoint display option; with laser
LED or with spring centering pin.

PRODUCT PRODUCT
INFORMATION IMAGE

Features:
• Suitable for:
- Round punch; max. diameter 40.5 mm
- Square punch; max. 25.4 mm
• Repositioning not possible
• Maximum sheet thickness:
- Steel sheet: 2.0 mm
- Stainless steel: 1.5 mm
- Aluminium: 3.0 mm
• Length stop adjustable from 0-500 mm
• Depth stop adjustable from 23-300 mm
• Repositioning stop with precision screw adjustment from 25-70 mm punch spacing
• Housing Ø for clamping pin: 13 mm
• Punching force: 45 kN
• To operate the laser LED module, a 230V / 50 Hz power supply is required
• When ordering a special punch, it is important to specify the die housing Ø
• Cutting pressure: 45 kN
• Compression hydraulic ram: 450 bar

48kg 06
