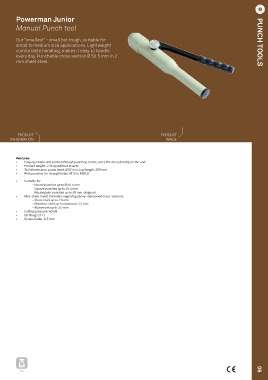

Powerman Junior PUNCH TOOLS

Manual Punch tool

Our “smallest” - small but tough, suitable for PUNCH TOOLS
small to medium size applications. Lightweight
comfortable handling, makes it easy to handle
every day. Punchable cross section Ø 50.5 mm in 2
mm sheet steel.

PRODUCT PRODUCT
INFORMATION IMAGE

Features:
• Easy operation and control through punching centre, since the die is directly on the unit
• Product weight: 2.35 kg without inserts
• Tool dimensions: pump head; Ø 52 mm, tool length; 300 mm
• With punches for through holes: M12 to M50,5
• Suitable for:
- Round punches up to Ø 50.5 mm
- Square punches up to 25.4 mm
- Rectangular punches up to 35 mm, diagonal
• Max. sheet metal thickness regarding above-mentioned cross-sections:
- Sheet steel up to 2.0 mm
- Stainless steel up to maximum 1.5 mm
- Aluminium up to 3.0 mm
• Cutting pressure: 40 kN
• Oil filling: 0.11 l
• Screw holder: 9,5 mm

3kg 06
