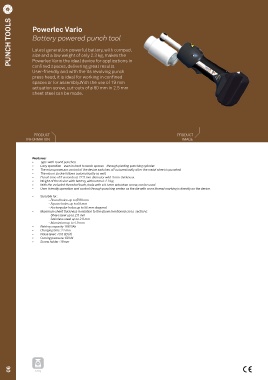

Page 192 - ingenioren

PUNCH TOOLS

PUNCH TOOLS Powerlec Vario

Battery powered punch tool

Latest generation powerful battery, with compact
size and a low weight of only 2.3 kg, makes the
Powerlec Vario the ideal device for applications in
confined spaces, delivering great results.
User-friendly and with the its revolving punch
press head, it is ideal for working in confined
spaces or for assembly.With the use of 19 mm
actuation screw, cut-outs of ø 80 mm in 2.5 mm
sheet steel can be made.

PRODUCT PRODUCT
INFORMATION IMAGE

Features:
• Type: with round punches
• Easy operation - even in hard to reach spaces - through pivoting punching cylinder.
• The microprocessor control of the device switches off automatically after the metal sheet is punched.
• The return stroke follows automatically as well.
• Punch time of 5 seconds at 22.5 mm diameter with 3 mm thickness.
• Weight of the device with battery, without tool: 2.3 kg.
• With the included threaded bush, tools with a 9.5mm actuation screw, can be used.
• User-friendly operation and control through punching center, as the die with cross thread marking is directly on the device.
• Suitable for:
- Round holes up to Ø 80 mm
- Square holes up to 68 mm
- Rectangular holes up to 96 mm diagonal
• Maximum sheet thickness in relation to the above mentioned cross-sections:
- Sheet steel up to 2.5 mm
- Stainless steel up to 2.0 mm
- Aluminium up to 4.0 mm
• Battery capacity 18V/3Ah
• Charging time: 22 min
• Noise level: 70.6 dB (A)
• Cutting pressure: 60 kN
• Screw holder: 19mm
