PUNCH TOOLS

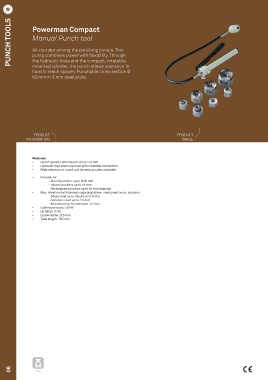

PUNCH TOOLS Powerman Compact

Manual Punch tool

All-rounder among the punching pumps. This
pump combines power with flexibility. Through
the hydraulic hose and the compact, rotatable
mounted cylinder, the punch allows operation in
hard to reach spaces. Punchable cross section Ø
60 mm in 3 mm steel plate.

PRODUCT PRODUCT
INFORMATION IMAGE

Features:
• Punch cylinder dimensions: Ø 58 x 94 mm
• Hydraulic high pressure hose with rotatable connection
• Wide selection of round and formed punches available
• Suitable for:
- Round punches up to Ø 60 mm
- Square punches up to 46 mm
- Rectangular punches up to 65 mm diagonal
• Max. sheet metal thickness regarding above-mentioned cross-sections:
- Sheet steel up to maximum 3.0 mm
- Stainless steel up to 2.0 mm
- Aluminium up to maximum 4.0 mm
• Cutting pressure: 50 kN
• Oil filling: 0.19 l
• Screw holder: 9,5 mm
• Tube length: 700 mm

06 10kg
