PUNCH TOOLS

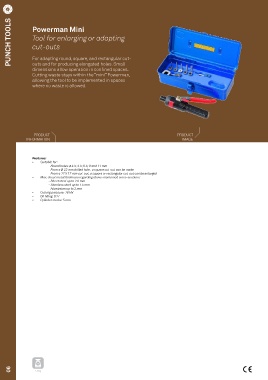

PUNCH TOOLS Powerman Mini

Tool for enlarging or adapting

cut-outs

For adapting round, square, and rectangular cut-
outs and for producing elongated holes. Small
dimensions allow operation in confined spaces.
Cutting waste stays within the “mini” Powerman,
allowing the tool to be implemented in spaces
where no waste is allowed.

PRODUCT PRODUCT
INFORMATION IMAGE

Features:
• Suitable for:
- Round holes: ø 4.5; 5.5; 6.5; 9 and 11 mm
- From a Ø 22 mm drilled hole , a square cut-out can be made
- From a 17 X 17 mm cut-out, a square or rectangular cut-out can be enlarged
• Max. sheet metal thickness regarding above-mentioned cross-sections:
- Sheet steel up to 2.0 mm
- Stainless steel up to 1.5 mm
- Aluminium up to 3 mm
• Cutting pressure: 18 kN
• Oil filling: 0.1 l
• Cylinder stroke: 5 mm

06 1,5kg
