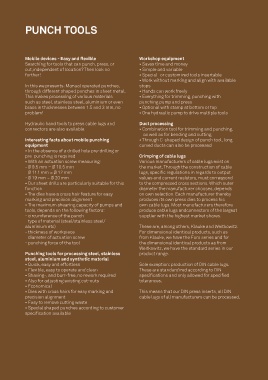

P. 190
PUNCH TOOLS
Mobile devices - Easy and flexible Workshop equipment
Searching for tools that can punch, press, or • Saves time and money
cut,independent of location? Then look no • Simple and variable
further! • Special- or customized tools insertable
• Work without marking and align with available
In this we presents: Manual operated punches, stops
through different shaped punches in sheet metal. • Hands can work freely
This makes processing of various materials • Everything for trimming, punching with
such as steel, stainless steel, aluminium or even punching pump and press
brass in thicknesses between 1.5 and 3 mm, no • Optional with stamp at bottom or top
problem! • One hydraulic pump to drive multiple tools
Hydraulic hand tools to press cable lugs and Duct processing
connectors are also available. • Combination tool for trimming and punching,
as well as for bending and cutting.
Interesting facts about mobile punching • Through C-shaped design of punch tool, long
equipment curved ducts can also be processed
• In the absence of a drilled hole pre-drilling or
pre-punching is required Crimping of cable lugs
• With an actuation screw measuring: Various manufacturers of cable lugs exist on
- Ø 9.5 mm = Ø 10.5 mm the market. Through the construction of cable
- Ø 11.1 mm = Ø 12 mm lugs, specific regulations in regards to output
- Ø 19 mm = Ø 20 mm values and current resistors, must correspond
• Our sheet drills are particularly suitable for this to the compressed cross sections. Which outer
function diameter the manufacturer chooses, depends
• The dies have a cross hair feature for easy on own selection. Each manufacturer thereby
marking and precision alignment produces its own press dies to process his
• The maximum shearing capacity of pumps and own cable lugs. Most manufacturers therefore
tools, depends on the following factors: produce cable lugs andconnectors of the largest
- circumference of the punch supplier with the highest market shares.
- type of material (steel/stainless steel/
aluminium etc) These are, among others, Klauke and Weitkowitz.
- thickness of workpiece For dimensional identical products, such as
- diameter of actuation screw from Klauke, we have the Euro series and for
- punching force of the tool the dimensional identical products as from
Weitkowitz, we have the standard series in our
Punching tools for processing steel, stainless product range.
steel, aluminium and synthetic material
• Quick, easy and effortless Sole exception: production of DIN cable lugs.
• Flexible, easy to operate and clean These are standardized according to DIN
• Shaving-, and burr-free, no rework required specifications and only allowed for specified
• Also for adjusting existing cut-outs tolerances.
• Economical
• Dies with cross hairs for easy marking and This means that our DIN press inserts, all DIN
precision alignment cable lugs of all manufacturers can be processed.
• Easy to remove cutting waste
• Special shaped punches according to customer
specification available
