PUNCH TOOLS

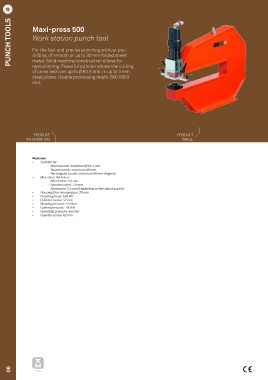

PUNCH TOOLS Maxi-press 500

Work station punch tool

For the fast and precise punching without pre-
drilling, of smooth or up to 30 mm folded sheet
metal. Solid machine construction allows for
repositioning. Powerful cylinder allows the cutting
of cross sections up to Ø 63.5 mm, in up to 3 mm
steel plates. Usable processing depth: 500 (900)
mm.

PRODUCT PRODUCT
INFORMATION IMAGE

Features:
• Suitable for:
- Round punch: maximum Ø 63.5 mm
- Square punch: maximum 46 mm
- Rectangular punch: maximum 60 mm diagonal
• Max sheet thickness:
- Sheet steel: 3.0 mm
- Stainless steel: 2.0 mm
- Aluminium: 3.5 mm (Depending on the size of punch)
• Housing Ø for clamping pin: 20 mm
• Punching force: 100 kN
• Cylinder stroke: 42 mm
• Working pressure: 450 bar
• Cutting pressure: 100 kN
• Operating pressure: 450 bar
• Cylinder stroke: 42 mm

06 92kg
