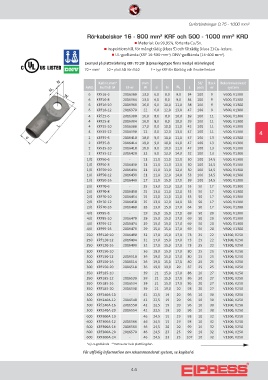

P. 95
Cu-förbindningar 0,75 - 1000 mm²
Rörkabelskor 16 - 800 mm² KRF och 500 - 1000 mm² KRD
Material: Cu 99,95%, förtenta Cu/Sn.
Inspektionshål, för mångtrådig (klass 5) och fåtrådig (klass 2) Cu-ledare.
UL-godkända (KRF 16-500 mm²). DNV-godkända (16-400 mm²).
Exempel på plattmärkning KRF: 70 10F (Elpress logotype finns med på märkningen)
70 = mm² 10 = platthål för M10 F = typ KRF för fåtrådig och flexibel ledare
Kat nr, mm² mm St/ Back Rekommenderat
AWG bulthål M El-nr W d N N 1 L pack nr system
6 KRF16-6 2016360 13,0 6,0 8,0 9,0 34 100 9 V600, V1300
6 KRF16-8 2016364 13,0 6,0 8,0 9,0 34 100 9 V600, V1300
6 KRF16-10 2016368 16,0 6,0 10,0 11,0 38 100 9 V600, V1300
6 KRF16-12 2016370 22 6,0 12,0 13,0 47 100 9 V600, V1300
4 KRF25-6 2016380 16,0 8,0 8,0 10,0 39 100 11 V600, V1300
4 KRF25-8 2016384 16,0 8,0 8,0 10,0 39 100 11 V600, V1300
4 KRF25-10 2016388 17,0 8,0 10,0 11,0 42 100 11 V600, V1300
4 KRF25-12 2016390 22 8,0 12,0 13,0 47 100 11 V600, V1300 4
2 KRF35-6 2016410 18,0 9,0 10,0 11,0 47 100 13 V600, V1300
2 KRF35-8 2016414 18,0 9,0 10,0 11,0 47 100 13 V600, V1300
2 KRF35-10 2016418 18,0 9,0 10,0 11,0 47 100 13 V600, V1300
2 KRF35-12 2016420 22 9,0 12,0 14,0 52 100 13 V600, V1300
1/0 KRF50-6 - 21 11,0 11,0 12,0 50 100 14,5 V600, V1300
1/0 KRF50-8 2016430 21 11,0 11,0 12,0 50 100 14,5 V600, V1300
1/0 KRF50-10 2016434 21 11,0 11,0 12,0 50 100 14,5 V600, V1300
1/0 KRF50-12 2016438 21 11,0 12,0 14,0 53 100 14,5 V600, V1300
1/0 KRF50-16 2016440 27 11,0 15,0 17,0 59 100 14,5 V600, V1300
2/0 KRF70-6 - 25 13,0 11,0 12,0 55 50 17 V600, V1300
2/0 KRF70-8 2016450 25 13,0 11,0 12,0 55 50 17 V600, V1300
2/0 KRF70-10 2016454 25 13,0 11,0 12,0 55 50 17 V600, V1300
2/0 KRF70-12 2016458 25 13,0 12,0 14,0 58 50 17 V600, V1300
2/0 KRF70-16 2016460 28 13,0 15,0 17,0 64 50 17 V600, V1300
4/0 KRF95-8 - 29 15,0 15,0 17,0 69 50 20 V600, V1300
4/0 KRF95-10 2016470 29 15,0 15,0 17,0 69 50 20 V600, V1300
4/0 KRF95-12 2016474 29 15,0 15,0 17,0 69 50 20 V600, V1300
4/0 KRF95-16 2016478 29 15,0 15,0 17,0 69 50 20 V600, V1300
250 KRF120-10 2016490 32 17,0 15,0 17,0 73 25 22 V1300, V250
250 KRF120-12 2016494 32 17,0 15,0 17,0 73 25 22 V1300, V250
250 KRF120-16 2016498 32 17,0 15,0 17,0 73 25 22 V1300, V250
300 KRF150-10 - 36 19,0 15,0 17,0 80 25 25 V1300, V250
300 KRF150-12 2016510 36 19,0 15,0 17,0 80 25 25 V1300, V250
300 KRF150-16 2016514 36 19,0 15,0 17,0 80 25 25 V1300, V250
300 KRF150-20 2016518 36 19,0 19,0 20 87 25 25 V1300, V250
350 KRF185-10 - 39 21 15,0 17,0 86 20 27 V1300, V250
350 KRF185-12 2016530 39 21 15,0 17,0 86 20 27 V1300, V250
350 KRF185-16 2016534 39 21 15,0 17,0 86 20 27 V1300, V250
350 KRF185-20 2016538 39 21 19,0 20 93 20 27 V1300, V250
500 KRF240A-10 - 42 22,5 19 20 96 10 30 V1300, V250
500 KRF240A-12 2016548 42 22,5 19 20 96 10 30 V1300, V250
500 KRF240A-16 2016550 42 22,5 19 20 96 10 30 V1300, V250
500 KRF240A-20 2016554 42 22,5 19 20 96 10 30 V1300, V250
600 KRF300A-10 - 46 24,5 15 19 93 10 32 V1300, V250
600 KRF300A-12 2016566 46 24,5 15 19 93 10 32 V1300, V250
600 KRF300A-16 2016568 46 24,5 20 20 99 10 32 V1300, V250
600 KRF300A-20 2016570 46 24,5 23 25 99 10 32 V1300, V250
600 KRF300A-24 - 46 24,5 23 25 107 10 32 V1300, V250
*ej UL-godkända **motsvarar hela plattlängden
För utförlig information om rekommenderat system, se kapitel 6.
4:5
