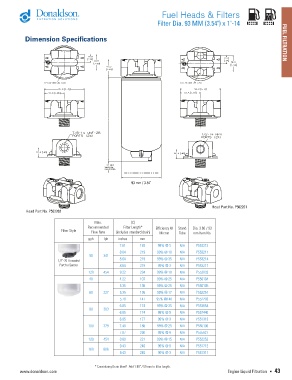

P. 45
Fuel Heads & Filters
Filter Dia. 93 MM (3.54") x 1"-14
Dimension Specifications FUEL FILTRATION
22 [.87]
93 mm / 3.54"
Head Part No. P562261
Head Part No. P562262
Max. (C)
Recommended Filter Length* Efficiency @ Stand Dia. 3.66 / 93
Filter Style Flow Rate (includes standard drain) Micron Tube mm Item No.
gph lph inches mm
7.61 193 99% @ 3 N/A P553213
8.64 219 99% @ 10 N/A P553211
90 341
1/2"-20 Threaded 8.64 219 99% @ 35 N/A P553214
Port for Sensor 8.64 219 99% @ 3 N/A P553217
120 454 9.22 234 99% @ 10 N/A P552032
40 4.22 107 99% @ 25 N/A P550104
5.35 136 99% @ 25 N/A P550105
60 227 5.35 136 99% @ 17 N/A P552251
Spin-on
5.78 147 95% @140 N/A P552203
6.85 174 99% @ 25 N/A P553854
80 303
6.85 174 99% @ 9 N/A P557440
6.95 177 99% @ 3 N/A P551313
100 379 7.40 188 99% @ 25 N/A P550106
7.87 200 99% @ 9 N/A P555627
120 454 8.69 221 99% @ 15 N/A P552253
9.43 240 99% @ 9 N/A P551712
160 606
9.43 240 99% @ 3 N/A P551311
* Considering Drain Bowl? Add 1.98" / 50 mm to filter length.
www.donaldson.com Engine Liquid Filtration • 43
