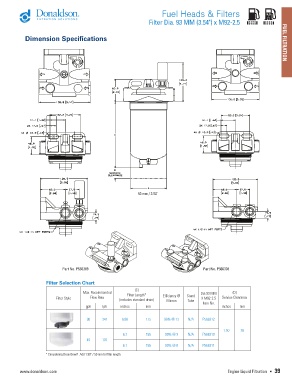

Fuel Heads & Filters

                                                               Filter Dia. 93 MM (3.54") x M92-2.5


           Dimension Specifications                                                                                   FUEL FILTRATION






































                                                          93 mm / 3.54"


















                           Part No. P566309                                          Part No. P566308

                    Filter Selection Chart
                                                         (C)
                                   Max. Recommended   Filter Length*                Dia.93 MM    (D)
                        Filter Style  Flow Rate   (includes standard drain)  Efficiency @   Stand   X M92-2.5   Service Clearance
                                                                      Micron
                                                                               Tube
                                     gph   lph     inches    mm                      Item No.  inches  mm

                                     90    341     6.88      175     99% @ 13  N/A   P566312
                                                                                             1.50   38
                                                    6.1      155     99% @ 3   N/A   P566310
                                     45    170
                                                    6.1      155     99% @ 8   N/A   P566311

                    * Considering Drain Bowl?  Add 1.98" / 50 mm to filter length.
