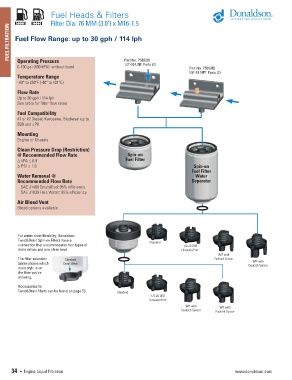

Fuel Heads & Filters

Filter Dia. 76 MM (3.0") x M16-1.5
FUEL FILTRATION Fuel Flow Range: up to 30 gph / 114 lph

Operating Pressure
1/2"-20 UNF Ports (2)
0-100 psi (690 kPA) without bowl Part No. P562263 Part No. P560382
1/4"-18 NPT Ports (2)
Temperature Range
-40° to 250ºF (-40º to 121ºC)

Flow Rate
Up to 30 gph / 114 lph
See table for filter flow rates
Fuel Compatibility
#1 or #2 Diesel, Kerosene, Biodiesel up to
B20 and JP8

Mounting
Engine or Chassis

Clean Pressure Drop (Restriction)
@ Recommended Flow Rate Spin-on
D kPA ≤ 6.9 Fuel Filter
D PSI ≤ 1.0 Spin-on
Fuel Filter
Water Removal @ Water
Recommended Flow Rate Separator
SAE J1488 Emulsified: 95% efficiency
SAE J1839 Free Water: 95% efficiency
Air Bleed Vent
Bleed options available

For water drain flexibility, Donaldson
Twist&Drain Spin-on Filters have a
connection that accommodates four types of Standard 1/2-20 UNF
drain valves and one clear bowl. Threaded Port"
WIF with
The filter selection Standard Packard Sensor
WIF with
tables shows which Drain Valve Deutsch Sensor
drain style is on
the filter you're
ordering.
Accessories for
Twist&Drain filters can be found on page 50. Standard
1/2-20 UNF
Threaded Port"
WIF with WIF with
Deutsch Sensor Packard Sensor

34 • Engine Liquid Filtration www.donaldson.com
