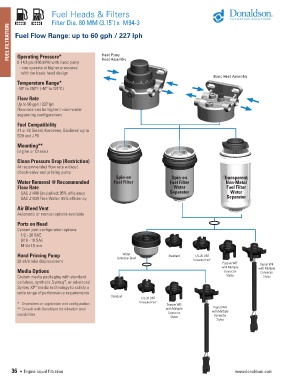

Fuel Heads & Filters

Filter Dia. 80 MM (3.15") x M94-3
FUEL FILTRATION Fuel Flow Range: up to 60 gph / 227 lph

Operating Pressure*
Head Assembly
0-14.5 psi (100 kPA) with hand pump Hand Pump
- can operate at higher pressures
with the basic head design
Basic Head Assembly
Temperature Range*
-40° to 250ºF (-40º to 121ºC)
Flow Rate
Up to 60 gph / 227 lph
Flow rate can be higher in non-water
separating configurations
Fuel Compatibility
#1 or #2 Diesel, Kerosene, Biodiesel up to
B20 and JP8

Mounting**
Engine or Chassis

Clean Pressure Drop (Restriction)
At recommended flow rate without
check-valve and priming pump
Spin-on Spin-on Transparent,
Water Removal @ Recommended Fuel Filter Fuel Filter Non-Metal
Flow Rate Water Fuel Filter
SAE J1488 Emulsified: 95% efficiency Separator Water
SAE J1839 Free Water: 95% efficiency Separator

Air Bleed Vent
Automatic or manual options available

Ports on Head
Custom port configuration options:
1/2 - 20 SAE
9/16 - 18 SAE
M14x1.5 mm

Hand Priming Pump Water Standard 1/2-20 UNF
20 ml/stroke displacement Collection Bowl Threaded Port" Passive WIF
Digital WIF
with Multiple with Multiple
Media Options Connector Connector
Custom media packaging with standard Styles Styles
cellulose, synthetic Synteq , or advanced
™
Synteq XP media technology to satisfy a
™
wide range of performance requirements
Standard
1/2-20 UNF
* Dependent on application and configuration Threaded Port" Passive WIF
** Consult with Donaldson for vibration level with Multiple Digital WIF
capabilities Connector with Multiple
Connector
Styles
Styles
