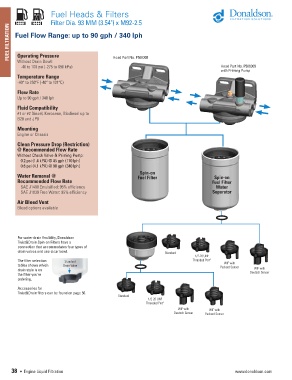

Fuel Heads & Filters

Filter Dia. 93 MM (3.54") x M92-2.5
FUEL FILTRATION Fuel Flow Range: up to 90 gph / 340 lph

Operating Pressure
Without Drain Bowl: Head Part No. P566308
-40 to 100 psi (-275 to 690 kPa) Head Part No. P566309
with Priming Pump
Temperature Range
-40° to 250ºF (-40º to 121ºC)

Flow Rate
Up to 90 gph / 340 lph

Fluid Compatibility
#1 or #2 Diesel, Kerosene, Biodiesel up to
B20 and JP8
Mounting
Engine or Chassis
Clean Pressure Drop (Restriction)
@ Recommended Flow Rate
Without Check Valve & Priming Pump:
0.2 psi (1.4 kPA) @ 45 gph (170 lph)
0.6 psi (4.1 kPA) @ 90 gph (340 lph)
Spin-on
Water Removal @ Fuel Filter Spin-on
Recommended Flow Rate Fuel Filter
SAE J1488 Emulsified: 95% efficiency Water
SAE J1839 Free Water: 95% efficiency Separator
Air Bleed Vent
Bleed options available

For water drain flexibility, Donaldson
Twist&Drain Spin-on Filters have a
connection that accommodates four types of
drain valves and one clear bowl. Standard
1/2-20 UNF
The filter selection Standard Threaded Port"
WIF with
tables shows which Drain Valve Packard Sensor
drain style is on WIF with
the filter you're Deutsch Sensor
ordering.

Accessories for
Twist&Drain filters can be found on page 50.
Standard
1/2-20 UNF
Threaded Port"
WIF with WIF with
Deutsch Sensor Packard Sensor

38 • Engine Liquid Filtration www.donaldson.com
