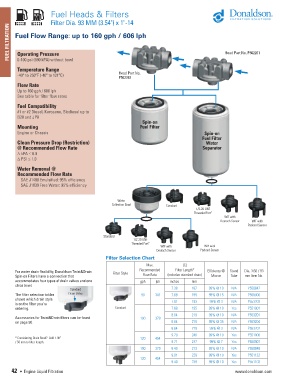

Fuel Heads & Filters

Filter Dia. 93 MM (3.54") x 1"-14
FUEL FILTRATION Fuel Flow Range: up to 160 gph / 606 lph Head Part No. P562261

Operating Pressure
0-100 psi (690 kPA) without bowl
Temperature Range
-40° to 250ºF (-40º to 121ºC) Head Part No.
P562262
Flow Rate
Up to 160 gph / 606 lph
See table for filter flow rates
Fuel Compatibility
#1 or #2 Diesel, Kerosene, Biodiesel up to
B20 and JP8
Spin-on
Mounting Fuel Filter
Engine or Chassis Spin-on
Fuel Filter
Clean Pressure Drop (Restriction) Water
@ Recommended Flow Rate Separator
D kPA ≤ 6.9
D PSI ≤ 1.0

Water Removal @
Recommended Flow Rate
SAE J1488 Emulsified: 95% efficiency
SAE J1839 Free Water: 95% efficiency

Water
Collection Bowl Standard
1/2-20 UNF
Threaded Port"
WIF with
Deutsch Sensor WIF with
Packard Sensor

Standard
1/2-20 UNF
Threaded Port"
WIF with WIF with
Deutsch Sensor Packard Sensor
Filter Selection Chart
Max. (C)
For water drain flexibility, Donaldson Twist&Drain Filter Style Recommended Filter Length* Efficiency @ Stand Dia. 3.66 / 93
Spin-on Filters have a connection that Flow Rate (includes standard drain) Micron Tube mm Item No.
accommodates four types of drain valves and one gph lph inches mm
clear bowl.
Standard 7.38 187 99% @ 10 N/A P550847
The filter selection tables Drain Valve 90 341 7.68 195 99% @ 15 N/A P558000
shows which drain style 7.61 193 99% @ 3 P553203
is on the filter you're N/A
ordering. Standard 7.68 195 99% @ 10 Yes P551001
8.64 219 99% @ 10 N/A P553201
Accessories for Twist&Drain filters can be found 100 379
on page 50. 8.64 219 99% @ 35 N/A P553204
8.64 219 99% @ 3 N/A P553207
9.70 246 99% @ 10 Yes P551000
* Considering Drain Bowl? Add 1.98" 120 454
/ 50 mm to filter length. 9.71 247 99% @ 7 Yes P550901
B 100 379 8.40 213 99% @ 10 N/A P550848
9.01 229 99% @ 10 Yes P551122
120 454
9.40 239 99% @ 10 Yes P551103
42 • Engine Liquid Filtration www.donaldson.com
