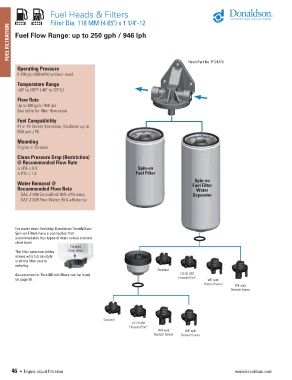

Fuel Heads & Filters

Filter Dia. 118 MM (4.65") x 1 1/4"-12
FUEL FILTRATION Fuel Flow Range: up to 250 gph / 946 lph

Head Part No. P174770
Operating Pressure
0-100 psi (690 kPA) without bowl

Temperature Range
-40° to 250ºF (-40º to 121ºC)

Flow Rate
Up to 230 gph / 946 lph
See table for filter flow rates
Fuel Compatibility
#1 or #2 Diesel, Kerosene, Biodiesel up to
B20 and JP8

Mounting
Engine or Chassis

Clean Pressure Drop (Restriction)
@ Recommended Flow Rate
D kPA ≤ 6.9 Spin-on
D PSI ≤ 1.0 Fuel Filter
Spin-on
Water Removal @ Fuel Filter
Recommended Flow Rate Water
SAE J1488 Emulsified: 95% efficiency Separator
SAE J1839 Free Water: 95% efficiency

For water drain flexibility, Donaldson Twist&Drain
Spin-on Filters have a connection that
accommodates four types of drain valves and one
clear bowl.
Standard
The filter selection tables Drain Valve
shows which drain style
is on the filter you're
ordering.
Standard
Accessories for Twist&Drain filters can be found 1/2-20 UNF
on page 50. Threaded Port" WIF with
Packard Sensor WIF with
Deutsch Sensor

Standard
1/2-20 UNF
Threaded Port"
WIF with WIF with
Deutsch Sensor Packard Sensor

46 • Engine Liquid Filtration www.donaldson.com
