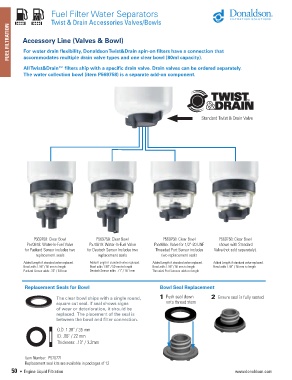

Fuel Filter Water Separators

Twist & Drain Accessories Valves/Bowls
FUEL FILTRATION Accessory Line (Valves & Bowl)

For water drain flexibility, Donaldson Twist&Drain spin-on filters have a connection that
accommodates multiple drain valve types and one clear bowl (80ml capacity).

All Twist&Drain™ filters ship with a specific drain valve. Drain valves can be ordered separately.
The water collection bowl (item P569758) is a separate add-on component.

Standard Twist & Drain Valve

P569758: Clear Bowl P569758: Clear Bowl P569758: Clear Bowl P569758: Clear Bowl
P570618: Water-In-Fuel Valve P570619: Water-In-Fuel Valve P550865: Valve for 1/2"-20 UNF shown with Standard
for Packard Sensor includes two for Deutsch Sensor includes two Threaded Port Sensor includes Valve (not sold separately).
replacement seals replacement seals two replacement seals
Added Length if standard valve replaced. Added Length if standard valve replaced. Added Length if standard valve replaced. Added Length if standard valve replaced.
Bowl adds 1.98" / 50 mm to length Bowl adds 1.98" / 50 mm to length Bowl adds 1.98" / 50 mm to length Bowl adds 1.98" / 50 mm to length
Packard Sensor adds: .35" / 8.8 mm Deutsch Sensor adds: .71" / 18.1 mm Threaded Port Sensors adds no length

Replacement Seals for Bowl Bowl Seal Replacement

The clear bowl ships with a single round, 1 Push seal down 2 Ensure seal is fully seated
square cut seal. If seal shows signs onto thread stem
of wear or deterioration, it should be
replaced. The placement of the seal is
between the bowl and filter connection.
O.D. 1.38" / 35 mm
ID: .86" / 22 mm
Thickness: .13" / 3.2mm

Item Number: P570771
Replacement seal kits are available in packages of 12
50 • Engine Liquid Filtration www.donaldson.com
