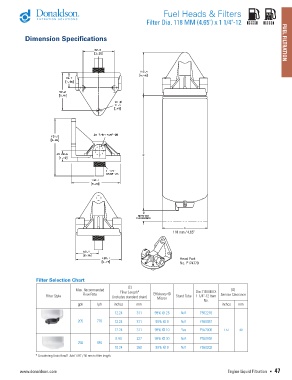

Fuel Heads & Filters
Filter Dia. 118 MM (4.65") x 1 1/4"-12
Dimension Specifications FUEL FILTRATION
118 mm / 4.65"
Head Part
No. P174770
Filter Selection Chart
(C)
Max. Recommended Filter Length* Dia.118 MM X (D)
Filter Style Flow Rate (includes standard drain) Efficiency @ Stand Tube 1 1/4"-12 Item Service Clearance
Micron
gph lph inches mm No. inches mm
12.24 311 99% @ 25 N/A P552216
205 776 12.24 311 99% @ 9 N/A P550937
12.24 311 99% @ 10 Yes P552006 1.57 40
8.94 227 99% @ 30 N/A P550958
250 946
10.24 260 99% @ 9 N/A P550202
* Considering Drain Bowl? Add 1.98" / 50 mm to filter length.
www.donaldson.com Engine Liquid Filtration • 47
