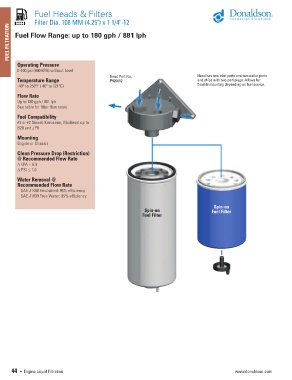

Fuel Heads & Filters

Filter Dia. 108 MM (4.25") x 1 1/4"-12
FUEL FILTRATION Fuel Flow Range: up to 180 gph / 881 lph

Operating Pressure
0-100 psi (690 kPA) without bowl
Head Part No. Head has two inlet ports and two outlet ports
Temperature Range P920682 and ships with two port plugs. Allows for
-40° to 250ºF (-40º to 121ºC) flexible mounting depending on fuel source.

Flow Rate
Up to 180 gph / 881 lph
See table for filter flow rates
Fuel Compatibility
#1 or #2 Diesel, Kerosene, Biodiesel up to
B20 and JP8

Mounting
Engine or Chassis

Clean Pressure Drop (Restriction)
@ Recommended Flow Rate
D kPA ≤ 6.9
D PSI ≤ 1.0
Water Removal @
Recommended Flow Rate
SAE J1488 Emulsified: 95% efficiency
SAE J1839 Free Water: 95% efficiency

Spin-on
Spin-on Fuel Filter
Fuel Filter

44 • Engine Liquid Filtration www.donaldson.com
