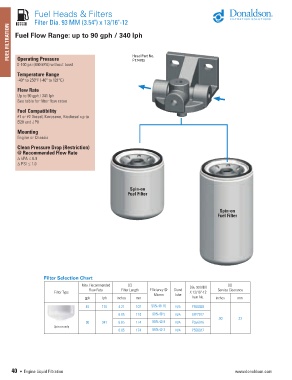

P. 42

Fuel Heads & Filters

               Filter Dia. 93 MM (3.54") x 13/16"-12
     FUEL FILTRATION  Fuel Flow Range: up to 90 gph / 340 lph






        Operating Pressure
                                                        P174785
        0-100 psi (690 kPA) without bowl                Head Part No.
        Temperature Range
        -40° to 250ºF (-40º to 121ºC)
        Flow Rate
        Up to 90 gph / 341 lph
        See table for filter flow rates

        Fuel Compatibility
        #1 or #2 Diesel, Kerosene, Biodiesel up to
        B20 and JP8
        Mounting
        Engine or Chassis
        Clean Pressure Drop (Restriction)
        @ Recommended Flow Rate
        D kPA ≤ 6.9
        D PSI ≤ 1.0




                                                       Spin-on
                                                      Fuel Filter


                                                                                            Spin-on
                                                                                           Fuel Filter














                   Filter Selection Chart
                                   Max. Recommended   (C)                      Dia. 93 MM      (D)
                                      Flow Rate    Filter Length   Efficiency @   Stand    Service Clearance
                       Filter Type                               Micron  Tube  X 13/16"-12
                                    gph    lph   inches  mm                     Item No.  inches   mm
                                    45     170    4.21   107    99% @ 16  N/A   P550928
                                                  6.85   174    99% @ 5   N/A   EFF7917
                                                                                           .90      23
                                    90     341    6.85   174    99% @ 9   N/A   P556916
                       Spin-on only
                                                  6.85   174    99% @ 3   N/A   P556917








      40   •  Engine Liquid Filtration                                                            www.donaldson.com
