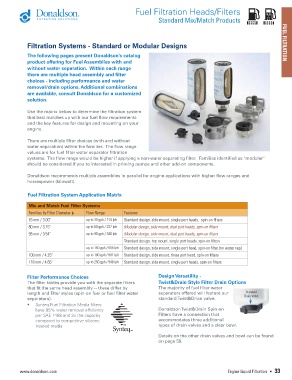

Fuel Filtration Heads/Filters
Standard Mix/Match Products

Filtration Systems - Standard or Modular Designs FUEL FILTRATION

The following pages present Donaldson’s catalog
product offering for Fuel Assemblies with and
without water separation. Within each range
there are multiple head assembly and filter
choices - including performance and water
removal/drain options. Additional combinations
are available, consult Donaldson for a customized
solution.

Use the matrix below to determine the filtration system
that best matches up with our fuel flow requirements
and the key features for design and mounting on your
engine.

There are multiple filter choices (with and without
water separation) within the families. The flow range
values are for fuel filter water separator filtration
systems. The flow range would be higher if applying a non-water separating filter. Families identified as "modular"
should be considered if you're interested in priming pumps and other add-on components.
Donaldson recommends multiple assemblies in parallel for engine applications with higher flow ranges and
horsespower (kilowatt).

Fuel Filtration System Application Matrix

Mix and Match Fuel Filter Systems
Families by Filter Diameter φ Flow Range Features
76 mm / 3.00" up to 30 gph / 114 lph Standard design, side mount, single port heads, spin-on filters
80 mm / 3.15" up to 60 gph / 227 lph Modular design, side mount, dual port heads, spin-on filters
93 mm / 3.54" up to 90 gph / 340 lph Modular design, side mount, dual port heads, spin-on filters
Standard design, top mount, single port heads, spin-on filters
up to 160 gph / 606 lph Standard design, side mount, single port head, spin-on filter (no water sep)
108 mm / 4.25" up to 180 gph / 881 lph Standard design, side mount, three port head, spin-on filters
118 mm / 4.65" up to 250 gph / 946 lph Standard design, side mount, single port heads, spin-on filters

Filter Performance Choices Design Versatility -
The filter tables provide you with the separate filters Twist&Drain Style Filter Drain Options
that fit the same head assembly -- these differ by The majority of fuel filter water
length and filter styles (spin-on fuel or fuel filter water separators offered will feature our Standard
separators). standard Twist&Drian valve. Drain Valve
• Synteq Fuel Filtration Media filters
have 95% water removal efficiency Donaldson Twist&Drain Spin-on
per SAE 1488 and 3x the capacity Filters have a connection that
compared to competitive silicone accommodates three additional
treated media types of drain valves and a clear bowl.

Details on the other drain valves and bowl can be found
on page 50.
