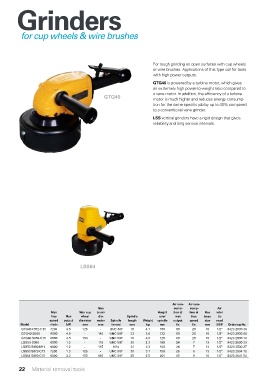

Grinders

for cup wheels & wire brushes

For rough grinding on open surfaces with cup wheels
or wire brushes. Applications of this type call for tools
with high power outputs.
GTG40 is powered by a turbine motor, which gives
an extremely high power-to-weight ratio compared to
a vane motor. In addition, the efficiency of a turbine
GTG40
motor is much higher and reduces energy consump-
tion for the same specific job by up to 40% compared
to a conventional vane grinder.
LSS vertical grinders have a rigid design that gives
reliability and long service intervals.

LSS64

Air con- Air con-
Max sump- sump- Air
Max Max cup brush Height tion at tion at Rec inlet
free Max wheel dia- Spindle over max free hose th-
speed output diameter meter Spindle length Weight spindle output speed size read
Model r/min kW mm mm thread mm kg mm l/s l/s mm BSP Ordering No.
GTG40 F072-C13 7200 4.5 125 - UNC 5/8' 16 4.1 100 60 20 16 1/2'' 8423 2930 30
GTG40 S060 6000 4.5 - 140 UNC 5/8'' 23 3.6 132 60 20 16 1/2'' 8423 2930 00
GTG40 S060-C15 6000 4.5 150 - UNC 5/8'' 16 4.3 126 60 20 16 1/2'' 8423 2930 10
LSS53 S060 6000 1.2 - 115 UNC 5/8'' 30 2.3 180 24 7 13 1/2'' 8423 2530 23
LSS53 S060-M14 6000 1.2 - 115 M14 31 2.3 180 24 7 13 1/2'' 8423 2530 27
LSS53 S072-C13 7200 1.3 125 - UNC 5/8'' 30 3.1 180 26 8 13 1/2'' 8423 2534 12
LSS64 S060-C15 6000 2.2 150 140 UNC 5/8'' 29 5.0 201 40 9 16 1/2'' 8423 2641 04

22 Material removal tools
