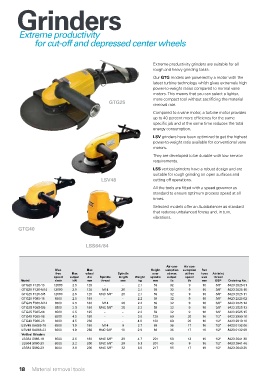

Grinders

Extreme productivity
for cut-off and depressed center wheels

Extreme productivity grinders are suitable for all
rough and heavy grinding tasks.

Our GTG models are powered by a motor with the
latest turbine technology which gives extremely high
power-to-weight ratios compared to normal vane
motors. This means that you can select a lighter,
more compact tool without sacrificing the material
GTG25
removal rate.
Compared to a vane motor, a turbine motor provides
up to 40 percent more efficiency for the same
specific job and at the same time reduces the total
energy consumption.
LSV grinders have been optimized to get the highest
power-to-weight ratio available for conventional vane
motors.
They are developed to be durable with low service
requirements.
LSS vertical grinders have a robust design and are
suitable for rough grinding on open surfaces and
LSV48 cutting off operations.
All the tools are fitted with a speed governor as
standard to ensure optimum process speed at all
times.
Selected models offer an Autobalancer as standard
that reduces unbalanced forces and, in turn,
vibrations.

GTG40

LSS64/84

Air con- Air con-
Max Max Height sumption sumption Rec
free Max wheel Spindle over at max at free hose Air inlet
speed output dia Spindle length Weight spindle output speed size thread
Model r/min kW mm thread mm kg mm l/s l/s mm BSP Ordering No.
GTG25 F120-13 12000 2.5 125 - - 2.1 59 32 9 16 3/8'' 8423 2525 01
GTG25 F120-M14 12000 2.5 125 M14 20 2.1 59 32 9 16 3/8'' 8423 2525 10
GTG25 F120-5/8 12000 2.5 125 UNC 5/8" 20 2.1 59 32 9 16 3/8'' 8423 2525 11
GTG25 F085-18 8500 2.5 180 - - 2.2 59 32 9 16 3/8'' 8423 2525 02
GTG25 F085-M14 8500 2.5 180 M14 20 2.2 59 32 9 16 3/8'' 8423 2525 12
GTG25 F085-5/8 8500 2.5 180 UNC 5/8" 20 2.2 59 32 9 16 3/8'' 8423 2525 13
GTG25 F085-18 8500 2.5 125 - - 2.2 59 32 9 16 3/8'' 8423 2525 15
GTG40 F085-18 8500 4.5 180 - - 3.8 128 60 20 16 1/2'' 8423 2900 10
GTG40 F066-23 6600 4.5 230 - - 4.0 128 60 20 16 1/2'' 8423 2910 10
LSV48 SA085-18 8500 1.9 180 M14 9 2.7 88 36 17 16 1/2'' 8423 0132 06
LSV48 SA066-23 6600 1.9 230 UNC 5/8'' 10 2.9 88 36 17 16 1/2'' 8423 0132 08
Vertical Grinders
LSS64 S085-18 8500 2.6 180 UNC 5/8" 29 4.7 201 50 13 16 1/2'' 8423 2641 38
LSS64 S060-23 6000 2.2 230 UNC 5/8" 29 5.1 201 40 9 16 1/2'' 8423 2641 46
LSS84 S060-23 6000 3.8 230 UNC 5/8" 32 6.0 217 65 17 19 1/2'' 8423 2840 26

18 Material removal tools
