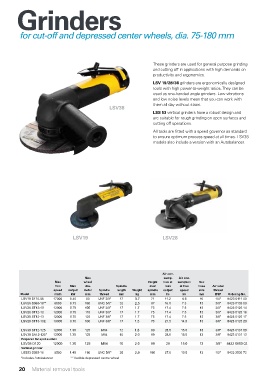

Grinders

for cut-off and depressed center wheels, dia. 75-180 mm

These grinders are used for general purpose grinding
and cutting off in applications with high demands on
productivity and ergonomics.
LSV 19/28/38 grinders are ergonomically designed
tools with high power-to-weight ratios. They can be
used as one-handed angle grinders. Low vibrations
and low noise levels mean that you can work with
them all day without strain.
LSV38
LSS 53 vertical grinders have a robust design and
are suitable for rough grinding on open surfaces and
cutting off operations.
All tools are fitted with a speed governor as standard
to ensure optimum process speed at all times. LSV38
models also include a version with an Autobalancer.

LSV19 LSV28

Air con-
Max sump- Air con-
Max wheel Height tion at sumption Rec
free Max dia- Spindle over max at free hose Air inlet
speed output meter Spindle length Weight spindle output speed size thread
Model r/min kW mm thread mm kg mm l/s l/s mm BSP Ordering No.
LSV19 S170-08 17000 0.45 80 UNF 3/8'' 17 0.7 71 11.2 6.6 10 1/4'' 8423 0111 40
LSV28 S060-18** 6000 0.73 180 UNC 5/8'' 32 2.5 87 16.0 7.3 13 3/8'' 8423 0135 53
LSV28 ST12-10 12000 0.75 100 UNF 3/8'' 17 1.7 75 17.4 7.5 13 3/8'' 8423 0125 14
LSV28 ST12-12 12000 0.75 115 UNF 3/8'' 17 1.7 75 17.4 7.5 13 3/8'' 8423 0125 16
LSV28 ST12-13 12000 0.75 125 UNF 3/8'' 17 1.7 75 17.4 7.5 13 3/8'' 8423 0125 17
LSV28 ST13-10E 13000 0.75 100 UNF 3/8'' 17 1.5 70 21.5 14.5 13 3/8'' 8423 0125 29

LSV38 ST12-125 12000 1.30 125 M14 12 1.8 89 28.0 15.0 13 3/8'' 8423 0131 09
LSV38 SA12-125* 12000 1.30 125 M14 10 2.0 89 28.0 15.0 13 3/8'' 8423 0131 13
Prepared for spot suction
LSV38 D120 12000 1.30 125 M14 10 2.0 89 28 15.0 13 3/8" 8423 0800 02
Vertical grinder
LSS53 S085-18 8500 1.40 180 UNC 5/8'' 30 2.9 180 27.0 10.0 13 1/2'' 8423 2530 72
*Includes Autobalancer **Flexible depressed centre wheel
20 Material removal tools
