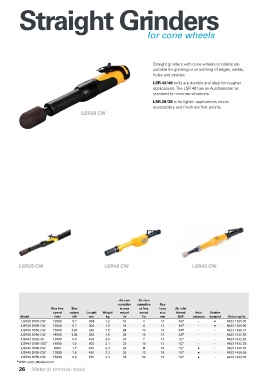

Straight Grinders

for cone wheels

Straight grinders with cone wheels or collets are
suitable for grinding or smoothing of edges, welds,
holes and cavities.
LSR 43/48 tools are durable and ideal for tougher
applications. The LSR 48 has an Autobalancer as
standard to minimize vibrations.

LSR 28/38 is for lighter applications where
accessibility and finish are first priority.
LSR38 CW

LSR28 CW LSR48 CW LSR43 CW

Air con- Air con-
sumption sumption Rec
Max free Max at max at free hose Air inlet
speed output Length Weight output speed size thread Auto Scatter
Model r/min kW mm kg l/s l/s mm BSP balancer damped Ordering No.
LSR28 S120-CW 12000 0.7 304 1.2 16 4 13 3/8" - ● 8423 1325 05
LSR28 S150-CW 15000 0.7 304 1.2 18 6 13 3/8" - ● 8423 1325 06
LSR38 S150-CW 15000 1.25 323 1.5 24 13 13 3/8" - - 8423 1232 31
LSR38 S180-CW 18000 1.35 323 1.5 28 15 13 3/8" - - 8423 1232 30
LSR43 S120-30 12000 0.9 438 2.0 20 7 13 1/2" - - 8423 1432 24
LSR43 S150-30C* 15000 1.0 503 2.1 23 10 13 1/2" - - 8423 1432 33
LSR48 S090-CW 9000 1.5 450 2.3 28 11 16 1/2" ● - 8423 1430 03
LSR48 S120-CW 12000 1.8 450 2.3 30 13 16 1/2" ● - 8423 1430 05
LSR48 S150-CW 15000 2.0 450 2.3 35 19 16 1/2" ● - 8423 1430 08
*With collet attachement
26 Material removal tools
