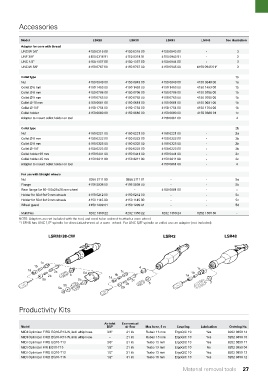

Accessories

Model LSR28 LSR38 LSR43 LSR48 See illustration
Adapter for cone with thread
UNC/W 3/8" 4150 0318 00 4150 0318 00 4150 0943 00 - 3
UNF 3/8" 4150 0318 01 4150 0318 01 4150 0943 01 - 3
UNC 1/2" 4150 1357 00 4150 1357 00 4150 0944 00 - 3
UNC/W 5/8" 4150 0767 00 4150 0767 00 4150 0945 00 4150 0945 01* 3

Collet type 1b
Nut 4150 0849 00 4150 0849 00 4150 0849 00 4150 0849 00 1a
Collet Ø 6 mm 4150 1453 00 4150 1453 00 4150 1453 00 4150 1453 00 1b
Collet Ø 8 mm 4150 0706 00 4150 0706 00 4150 0706 00 4150 0706 00 1b
Collet Ø 9 mm 4150 0765 00 4150 0765 00 4150 0765 00 4150 0765 00 1b
Collet Ø 10 mm 4150 0681 00 4150 0681 00 4150 0681 00 4150 0681 00 1b
Collet Ø 1/4" 4150 1754 00 4150 1754 00 4150 1754 00 4150 1754 00 1b
Collet holder 4150 0680 00 4150 0680 00 4150 0680 00 4150 0680 01 1c
Adapter to mount collet holder on tool 4150 0861 00 4

Collet type 2b
Nut 4150 0221 00 4150 0221 00 4150 0221 00 - 2a
Collet Ø 6 mm 4150 0222 00 4150 0222 00 4150 0222 00 - 2b
Collet Ø 8 mm 4150 0325 00 4150 0325 00 4150 0325 00 - 2b
Collet Ø 1/4" 4150 0223 00 4150 0223 00 4150 0223 00 - 2b
Collet holder 90 mm 4150 0441 00 4150 0441 00 4150 0441 00 - 2c
Collet holder 45 mm 4150 0211 00 4150 0211 00 4150 0211 00 - 2c
Adapter to mount collet holder on tool 4150 0861 00 - 4

For use with Straight wheels
Nut 0266 2111 00 0266 2111 01 - - 5a
Flange 4106 5938 00 4106 5938 00 - - 5b
Rear flange for 50-100x25x20 mm wheel - - 4150 0881 00 - -
Holder for 50x19x10 mm wheels 4150 0212 00 4150 0212 00 - - 5c
Holder for 50x13x10 mm wheels 4150 1145 00 4150 1145 00 - - 5c
Wheel guard 4150 1299 81 4150 1299 81 - - 5d
MultiFlex 8202 1350 22 8202 1350 22 8202 1350 24 8202 1350 60 -
NOTE: Adapters are not included with the tool, and need to be ordered to attach a cone wheel.
*LSR48 has UNC 1/2" spindle for direct attachment of a cone wheel. For UNC 5/8" spindle or collet use an adapter (not included).

LSR28/38-CW LSR43 LSR48

1c
1b 4
1a 2c 5d 1c 1b 1c
2b 3 1b 1a
2a 5c 1a 2c
5b 2b 3 3
5a 2a

Productivity Kits

Air inlet Economical
Model BSP air flow Max hose, 5 m Coupling Lubrication Ordering No.
MIDI Optimizer F/RD EQ10-R13-W, incl. whip hose 3/8'' 21 l/s Rubair 13 mm ErgoQIC 10 Yes 8202 0850 14
MIDI Optimizer F/RD EQ10-R13-W, incl. whip hose – 21 l/s Rubair 13 mm ErgoQIC 10 Yes 8202 0850 15
MIDI Optimizer F/RD EQ10-T13 3/8'' 21 l/s Turbo 13 mm ErgoQIC 10 Yes 8202 0850 17
MIDI Optimizer F/R EQ10-T13 1/2'' 21 l/s Turbo 13 mm ErgoQIC 10 No 8202 0850 04
MIDI Optimizer F/RD EQ10-T13 1/2'' 21 l/s Turbo 13 mm ErgoQIC 10 Yes 8202 0850 13
MIDI Optimizer F/RD EQ10-T16 1/2'' 31 l/s Turbo 16 mm ErgoQIC 10 Yes 8202 0850 12

Material removal tools 27
