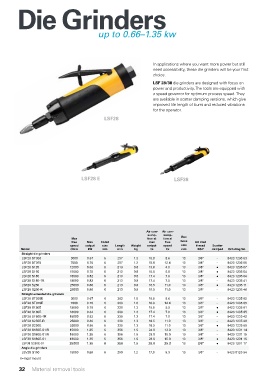

Die Grinders

up to 0.66–1.35 kw

In applications where you want more power but still
need accessibility, these die grinders will be your first
choice.
LSF 28/38 die grinders are designed with focus on
power and productivity. The tools are equipped with
a speed governor for optimum process speed. They
are available in scatter damping versions, which give
improved life length of burrs and reduced vibrations
for the operator.
LSF28

LSF28 E LSF38

Air con- Air con-
sump- sump-
Max tion at tion at Rec
free Max Collet max free hose Air inlet
speed output size Length Weight output speed size thread Scatter
Model r/min kW mm mm kg l/s l/s mm BSP damped Ordering No.
Straight die grinders
LSF28 ST030 3000 0.67 6 257 1.2 18.0 8.6 13 3/8'' - 8423 1235 63
LSF28 ST070 7000 0.76 6 257 1.2 18.9 12.4 13 3/8'' - 8423 1235 66
LSF28 S120 12000 0.66 6 213 0.8 13.8 4.0 13 3/8'' ● 8423 1235 67
LSF28 S150 15000 0.70 6 213 0.8 15.0 5.5 13 3/8'' ● 8423 1235 64
LSF28 S180 18000 0.82 6 213 0.8 17.4 7.0 13 3/8'' ● 8423 1235 04
LSF28 S180-1R 18000 0.82 6 213 0.8 17.4 7.0 13 3/8'' - 8423 1235 41
LSF28 S250 25000 0.86 6 213 0.8 18.5 11.0 13 3/8'' ● 8423 1235 11
LSF28 S250-R 25000 0.86 6 213 0.8 18.5 11.0 13 3/8'' - 8423 1235 48
Straight extended die grinders
LSF28 ST030E 3000 0.67 6 383 1.8 18.0 8.6 13 3/8'' - 8423 1235 62
LSF28 ST070E 7000 0.76 6 383 1.8 18.9 12.4 13 3/8'' - 8423 1235 65
LSF28 S150E 15000 0.70 6 338 1.3 15.0 5.5 13 3/8'' ● 8423 1235 61
LSF28 S180E 18000 0.82 6 338 1.3 17.4 7.0 13 3/8'' ● 8423 1235 05
LSF28 S180E-1R 18000 0.82 6 338 1.3 17.4 7.0 13 3/8'' - 8423 1235 42
LSF28 S250E-R 25000 0.86 6 338 1.3 18.5 11.0 13 3/8'' - 8423 1235 49
LSF28 S250E 25000 0.86 6 338 1.3 18.5 11.0 13 3/8'' ● 8423 1235 60
LSF38 S150E-01/R 15000 1.25 6 356 1.5 24.0 13.0 13 3/8'' - 8423 1231 14
LSF38 S180E-01/R 18000 1.35 6 356 1.5 28.0 15.0 13 3/8'' - 8423 1231 15
LSF38 S180E-01 18000 1.35 6 356 1.5 28.0 15.0 13 3/8'' ● 8423 1231 16
LSF38 S250E-01 25000 1.35 6 356 1.5 28.0 25.0 13 3/8'' ● 8423 1231 17
Angle die grinders
LSV28 S150 15000 0.68 6 250 1.2 17.0 8.3 10 3/8'' - 8423 0125 54
R=Rigid mount
32 Material removal tools
