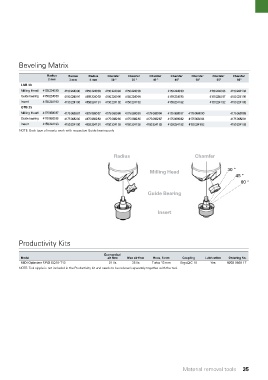

Beveling Matrix

Radius Radius Radius Chamfer Chamfer Chamfer Chamfer Chamfer Chamfer Chamfer
2 mm 3 mm 4 mm 30 ° 35 ° 40 ° 45° 50° 55° 60°
LSB 38
Milling Head 4150 2240 90 4150 2240 90 4150 2240 90 4150 2240 94 4150 2240 98 4150 2240 90 4150 2240 96 4150 2241 04
Guide bearing 4150 2240 80 4150 2240 91 4150 2240 92 4150 2240 95 4150 2240 99 4150 2240 93 4150 2240 97 4150 2241 05
Insert 4150 2241 93 4150 2241 90 4150 2241 91 4150 2241 92 4150 2241 92 4150 2241 92 4150 2241 92 4150 2241 92
GTB 25
Milling Head 4175 0680 87 4175 0680 87 4175 0680 87 4175 0680 88 4175 0680 93 4175 0680 94 4175 0680 87 4175 0680 90 4175 0680 89
Guide bearing 4175 0682 85 4175 0682 82 4175 0682 83 4175 0682 80 4175 0682 86 4175 0682 87 4175 0680 82 4175 0682 84 4175 0682 81
Insert 4150 2241 93 4150 2241 90 4150 2241 91 4150 2241 92 4150 2241 92 4150 2241 92 4150 2241 92 4150 2241 92 4150 2241 92
NOTE: Each type of inserts work with respective Guide bearing only

Radius Chamfer

Milling Head 30 °
45 °
60 °

Guide Bearing

Insert

Productivity Kits

Economical
Model air flow Max air flow Hose, 5 mm Coupling Lubrication Ordering No.
MIDI Optimizer F/RD EQ10-T13 21 l/s 35 l/s Turbo 13 mm ErgoQIC 10 Yes 8202 0850 17
NOTE: Tool nipple is not included in the Productivity kit and needs to be ordered separately together with the tool.

Material removal tools 35
