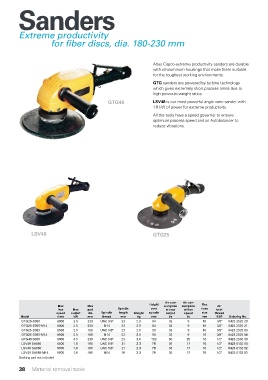

Page 38 - ingenioren

Sanders

Extreme productivity
for fiber discs, dia. 180–230 mm
for fiber discs, dia. 180-230 mm

Atlas Copco extreme productivity sanders are durable
with all-aluminum housings that make them suitable
for the toughest working environments.
GTG sanders are powered by turbine technology
which gives extremely short process times due to
high power-to-weight ratios.

GTG40 LSV48 is our most powerful angle vane sander with
1.9 kW of power for extreme productivity.
All the tools have a speed governor to ensure
optimum process speed and an Autobalancer to
reduce vibrations.

LSV48 GTG25

Air con- Air con-
Height Rec
Max Max sumption sumption Air
free Max pad Spindle over at max at free hose inlet
speed output dia Spindle length Weight spindle output speed size thread
Model r/min kW mm thread mm kg mm l/s l/s mm BSP Ordering No.
GTG25-S060 6000 2.5 230 UNC 5/8'' 23 2.0 84 32 9 16 3/8'' 8423 2525 20
GTG25-S060-M14 6000 2.5 230 M14 23 2.0 84 32 9 16 3/8'' 8423 2525 21
GTG25-S085 8500 2.5 180 UNC 5/8'' 23 2.0 59 32 9 16 3/8'' 8423 2525 03
GTG25-S085-M14 8500 2.5 180 M14 23 2.0 59 32 9 16 3/8'' 8423 2525 04
GTG40 S060 6000 4.5 230 UNC 5/8'' 23 3.6 132 60 20 16 1/2'' 8423 2930 00
LSV48 SA066 6600 1.9 180 UNC 5/8'' 21 2.3 78 36 17 16 1/2'' 8423 0132 00
LSV48 SA085 8500 1.9 180 UNC 5/8'' 21 2.3 78 36 17 16 1/2'' 8423 0132 02
LSV48 SA085-M14 8500 1.9 180 M14 18 2.3 78 36 17 16 1/2'' 8423 0132 03
Backing pad not included

38 Material removal tools
