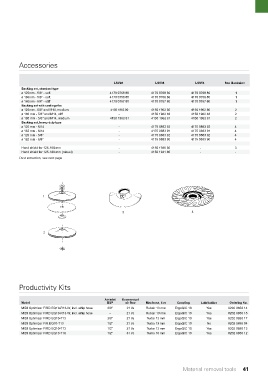

Page 41 - ingenioren

Sanders

Accessories

LSV28 LSV38 LSS53 See illustraion
Backing set, standard type
ø 125mm - 5/8'' - soft 4170 0768 80 4170 0768 80 4170 0768 80 1
ø 180mm - 5/8'' - soft 4170 0756 80 4170 0756 80 4170 0756 80 1
ø 180mm - 5/8'' - stiff 4170 0757 80 4170 0757 80 4170 0757 80 1
Backing set with cooling ribs
ø 125mm - 5/8'' and M14, medium 4150 1962 80 4150 1962 80 4150 1962 80 2
ø 180 mm - 5/8'' and M14, stiff - 4150 1962 83 4150 1962 83 2
ø 180 mm - 5/8'' and M14, medium 4150 1962 81 4150 1962 81 4150 1962 81 2
Backing set, heavy duty type
ø 120 mm - M14 - 4175 0883 93 4175 0883 93 4
ø 162 mm - M14 - 4175 0883 91 4175 0883 91 4
ø 120 mm - 5/8'' - 4175 0883 92 4175 0883 92 4
ø 162 mm - 5/8'' - 4175 0883 90 4175 0883 90 4
Hand shield for 125-180 mm - 4150 1936 80 - 3
Hand shield for 125-180 mm (robust) - 4150 1941 80 - -
Dust extraction, see next page

1

3 4

2

Productivity Kits

Air inlet Economical
Model BSP air flow Max hose, 5 m Coupling Lubrication Ordering No.
MIDI Optimizer F/RD EQ10-R13-W, incl. whip hose 3/8'' 21 l/s Rubair 13 mm ErgoQIC 10 Yes 8202 0850 14
MIDI Optimizer F/RD EQ10-R13-W, incl. whip hose – 21 l/s Rubair 13 mm ErgoQIC 10 Yes 8202 0850 15
MIDI Optimizer F/RD EQ10-T13 3/8'' 21 l/s Turbo 13 mm ErgoQIC 10 Yes 8202 0850 17
MIDI Optimizer F/R EQ10-T13 1/2'' 21 l/s Turbo 13 mm ErgoQIC 10 No 8202 0850 04
MIDI Optimizer F/RD EQ10-T13 1/2'' 21 l/s Turbo 13 mm ErgoQIC 10 Yes 8202 0850 13
MIDI Optimizer F/RD EQ10-T16 1/2'' 31 l/s Turbo 16 mm ErgoQIC 10 Yes 8202 0850 12

Material removal tools 41
