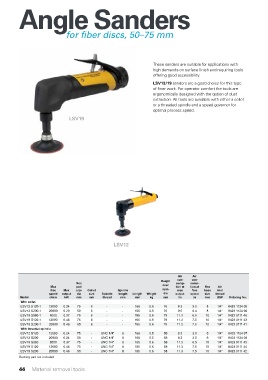

Angle Sanders

for fiber discs, 50–75 mm

These sanders are suitable for applications with
high demands on surface finish and requiring tools
offering good accessibility.
LSV12/19 sanders are a good choice for this type
of finer work. For operator comfort the tools are
ergonomically designed with the option of dust
extraction. All tools are available with either a collet
or a threaded spindle and a speed governor for
optimal process speed.
LSV19

LSV12

Air Air
Height con- con-
Rec sump- sump-
Max pad over tion at tion at Rec Air
free Max size Collet Spindle spin- max free hose inlet
speed output dia size Spindle length Length Weight dle output speed size thread
Model r/min kW mm mm thread mm mm kg mm l/s l/s mm BSP Ordering No.
With collet
LSV12 S120-1 12000 0.24 75 6 - - 166 0.5 76 8.3 3.0 8 1/4'' 8423 1124 05
LSV12 S200-1 20000 0.29 50 6 - - 166 0.5 76 9.5 6.4 8 1/4'' 8423 1124 06
LSV19 S080-1 8000 0.37 75 6 - - 185 0.6 79 11.3 6.5 10 1/4'' 8423 0111 46
LSV19 S120-1 12000 0.46 75 6 - - 185 0.6 79 11.3 7.5 10 1/4'' 8423 0111 43
LSV19 S200-1 20000 0.46 50 6 - - 185 0.6 79 11.3 7.5 10 1/4'' 8423 0111 41
With threaded spindle
LSV12 S120 12000 0.24 75 - UNC 1/4" 8 166 0.5 58 8.3 3.0 8 1/4'' 8423 1124 07
LSV12 S200 20000 0.24 50 - UNC 1/4" 8 166 0.5 58 8.3 3.0 8 1/4'' 8423 1124 08
LSV19 S080 8000 0.37 75 - UNC 1/4'' 8 185 0.6 58 11.3 6.5 10 1/4'' 8423 0111 45
LSV19 S120 12000 0.46 75 - UNC 1/4'' 8 185 0.6 58 11.3 7.5 10 1/4'' 8423 0111 44
LSV19 S200 20000 0.46 50 - UNC 1/4'' 8 185 0.6 58 11.3 7.5 10 1/4'' 8423 0111 42
Backing pad not included

44 Material removal tools
