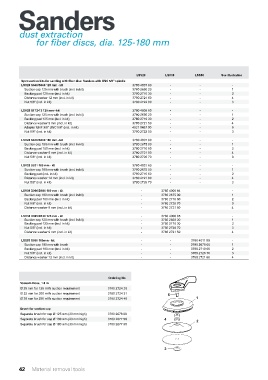

Sanders

dust extraction
for fiber discs, dia. 125–230 mm
for fiber discs, dia. 125-180 mm

LSV28 LSV38 LSS53 See illustration
Spot suction kits for sanding with fiber disc. Sanders with UNC 5/8’’ spindle
LSV28 S040/S060 125 mm - kit 3780 4007 80 - - -
Suction cap 125 mm with brush (incl. in kit) 3780 2650 20 - - 1
Backing pad 125 mm (incl. in kit) 3780 2710 30 - - 2
Distance washer 12 mm (incl. in kit) 3780 2721 60 - - 4
Nut 5/8" (incl. in kit) 3780 2722 00 - - 3
LSV28 ST12-13 125 mm - kit 3780 4008 60 - - -
Suction cap 125 mm with brush (incl. in kit) 3780 2650 20 - - 1
Backing pad 125 mm (incl. in kit) 3780 2710 30 - - 2
Distance washer 9 mm (incl. in kit) 3780 2721 50 - - 4
Adapter UNF 3/8" UNC 5/8" (incl. in kit) 4021 0457 00 - - 5
Nut 5/8" (incl. in kit) 3780 2722 00 - - 3
LSV28 S040/S060 180 mm - kit 3780 4007 90 - - -
Suction cap 180 mm with brush (incl. in kit) 3780 2675 00 - - 1
Backing pad 180 mm (incl. in kit) 3780 2710 60 - - 2
Distance washer 9 mm (incl. in kit) 3780 2721 50 - - 4
Nut 5/8" (incl. in kit) 3780 2726 70 - - 3
LSV28 S021 180 mm - kit 3780 4031 60 - - -
Suction cap 180 mm with brush (incl. in kit) 3780 2675 00 - - 1
Backing pad (incl. in kit) 3780 2710 60 - - 2
Distance washer 12 mm (incl. in kit) 3780 2721 60 - - 4
Nut 5/8" (incl. in kit) 3780 2726 70 - - 3
LSV38 D066/D085 180 mm - kit - 3780 4008 84 -
Suction cap 180 mm with brush (incl. in kit) - 3780 2675 00 1
Backing pad 180 mm (incl. in kit) - 3780 2710 60 2
Nut 5/8" (incl. in kit) - 3780 2726 70 3
Distance washer 9 mm (incl. in kit) - 3780 2721 50 4
LSV38 D085/D120 125 mm - kit - 3780 4008 85 -
Suction cap 125 mm with brush (incl. in kit) - 3780 2650 20 1
Backing pad 125 mm (incl. in kit) - 3780 2710 30 2
Nut 5/8" (incl. in kit) - 3780 2726 70 3
Distance washer 9 mm (incl. in kit) - 3780 2721 50 4
LSS53 S060 180mm - kit - - 3780 4011 00 -
Suction cap 180 mm with brush - - 3780 2675 00 1
Backing pad 180 mm (incl. in kit) - - 3780 2710 60 2
Nut 5/8" (incl. in kit) - - 3780 2726 70 3
Distance washer 12 mm (incl. in kit) - - 3780 2721 60 4

Ordering No.
Vacuum Hose, 1.8 m
Ø 25 mm for 125 m /h suction requirement 3780 2724 20
3
Ø 32 mm for 200 m /h suction requirement 3780 2724 31 5
3
3
Ø 38 mm for 250 m /h suction requirement 3780 2724 40 1
Brush for suction cap
Separate brush for cap Ø 125 mm (20 mm high) 3780 2678 00
Separate brush for cap Ø 180 mm (20 mm high) 3780 2677 50 4 2
Separate brush for cap Ø 180 mm (30 mm high) 3780 2677 30

3

42 Material removal tools
